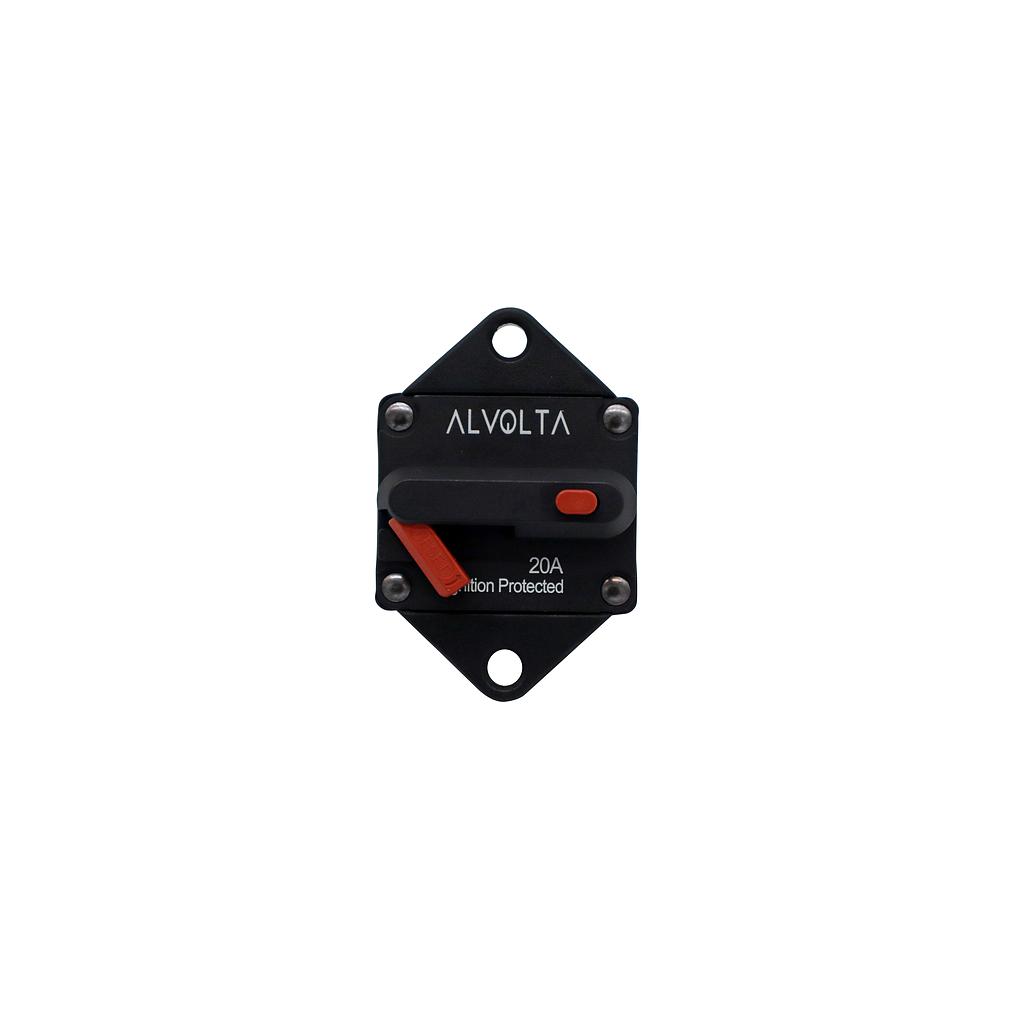

Alvolta 20A Manual Reset Panel Mount Circuit Breaker

20A Manual Reset Panel Mount Circuit Breaker

Alvolta 20A Manual Reset Panel Mount Circuit Breaker

(0 reviews)

Through-wall panel mount circuit breaker with 1/4" terminal studs

$ 19.95 - Inc GST 19.95 in stock AUD $ 19.95 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastIn stock

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Circuit Protection, Circuit Breakers, Panel Mount

SKU: M1220P

Alvolta 20 A Manual Reset Panel Mount Circuit Breaker

Features

20 A
Manual reset circuit breaker
Panel mount for through-wall installation
Suitable for 12 - 48 V systems
Suitable for heavy-duty applications
IP67 rated
Can be used as an isolation switch
1/4" / M6 terminal studs
Thermal trip with trip status indicator
Manual trip button
Single pole
Ignition protected
Mounting holes on top and bottom for tidy installation

Where to use it

Alvolta panel mount circuit breakers are ideal for under bonnet applications. They are suitable for use in motorhomes, 4WD, boats, marine, and off-grid setups.

Its durable design and IP67 rating make these an excellent choice for heavy duty, off-road applications. It is sealed internally against moisture, dust and dirt.

Dimensions

Width	48.2 mm
Height	57 mm
Depth	44 mm
Weight	.085 kg

Compliance

SAE J1625
ABYC E-11
CE
SAE J1117 (Ignition Protection)
IP67

Warranty

5-year warranty

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_M1220P_Manual Reset Panel Mount Circuit Breakers.pdf

Download

A manual reset circuit breaker protects your electrical system from overloads and short circuits. When tripped, it cuts off power to prevent damage, and can be manually reset once the issue is investigated and resolved - making it ideal for automotive, marine, solar, and off-grid applications.

A manual reset breaker stays off after tripping, allowing you to inspect and correct the fault before restoring power. In contrast, an automatic reset breaker reconnects power automatically once it cools down, which can risk repeated faults if the issue isn't fixed.

These breakers are designed for flush mounting on a panel or enclosure. Simply mount the breaker on the panel with M8 bolts and connect your positive circuit wires to the terminals as directed. Always ensure the breaker's rating matches your circuit's current load.

Alvolta manual reset circuit breakers are IP67 rated, meaning they are internally sealed for protection against moisture, dust, and dirt. They are also ignition protected.

Circuit breakers will experience less voltage drop across the circuit. When they are tripped, you can simply reset the device as opposed to having to source and install a new fuse, should a fuse blow. These units offer lower voltage drop than a fuse and can be used as an occasional isolation switch.
