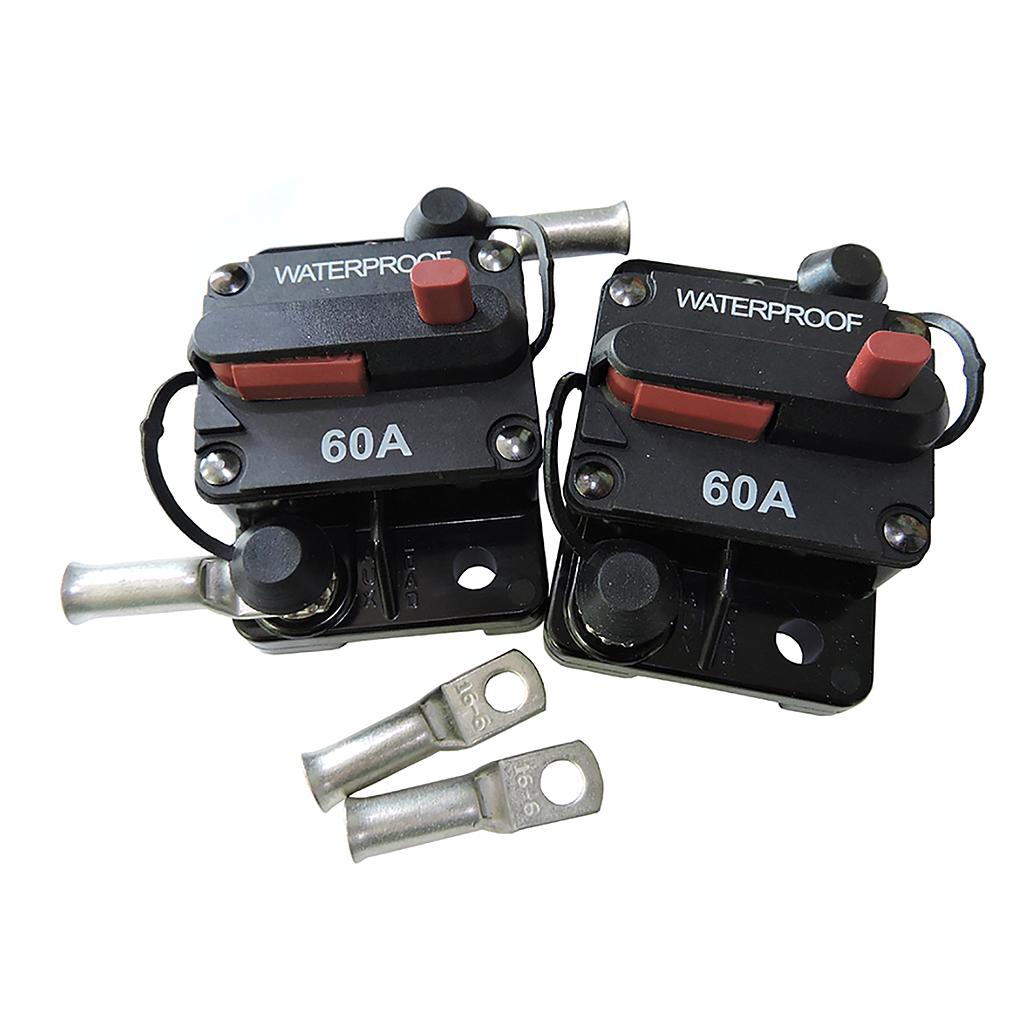

Ships from BrisbaneAlvolta 60A Manual Reset Circuit Breaker Kit
Circuit breaker features
- 60 A
- Manual reset circuit breaker
- Surface mount for simple on-wall installation
- Suitable for 12 - 48 V systems
- Marine-rated
- Suitable for heavy-duty applications
- IP67-rated thermoplastic
- Can be used as an ON / OFF isolation switch
- 1/4" / M6 terminal studs
- Thermal trip with trip status indicator
- Manual trip button
- Single pole
- Ignition protected
- Recessed mounting holes for tidy installation
Copper lugs features
- Fully annealed copper cable lug
- Electro-tin plated for superior corrosion resistance
- Suits cables up to 10 mm²
Circuit breaker dimensions
Width | 48.2 mm |
Height | 57 mm |
Depth | 44 mm |
Weight | 0.1 kg |
Copper lug dimensions
Hole Diameter | 6 mm |
Width | 12 mm |
Length | 27 mm |
Safety certifications
- SAE J1625
- ABYC E-11
- CE
- SAE J1117 (Ignition protection)
- IP67
- Compliant: AS/NZS 4325 - Part 1
Warranty
- 3-year warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
Accessory Products
![[C135B] Tycab 13.5mm² Black Single 6B&S Cable](/web/image/product.product/956/image_512/%5BC135B%5D%20Tycab%2013.5mm%C2%B2%20Black%20Single%206B%26S%20Cable?unique=76587f7)
![[C135R] Tycab 13.5mm² Red Single 6B&S Cable](/web/image/product.product/974/image_512/%5BC135R%5D%20Tycab%2013.5mm%C2%B2%20Red%20Single%206B%26S%20Cable?unique=0acb5a2)
![[C16] Tycab 16mm² Tinned Twin Core Cable](/web/image/product.product/1094/image_512/%5BC16%5D%20Tycab%2016mm%C2%B2%20Tinned%20Twin%20Core%20Cable?unique=a3f2e7a)
Alternative Products
![[M1280KIT] Alvolta 80A Manual Reset Circuit Breaker Kit](/web/image/product.template/11084/image_512/%5BM1280KIT%5D%20Alvolta%2080A%20Manual%20Reset%20Circuit%20Breaker%20Kit?unique=d449e72)
![[M1280KIT] Alvolta 80A Manual Reset Circuit Breaker Kit](/web/image/product.template/11084/hover_image/%5BM1280KIT%5D%20Alvolta%2080A%20Manual%20Reset%20Circuit%20Breaker%20Kit?unique=d449e72)

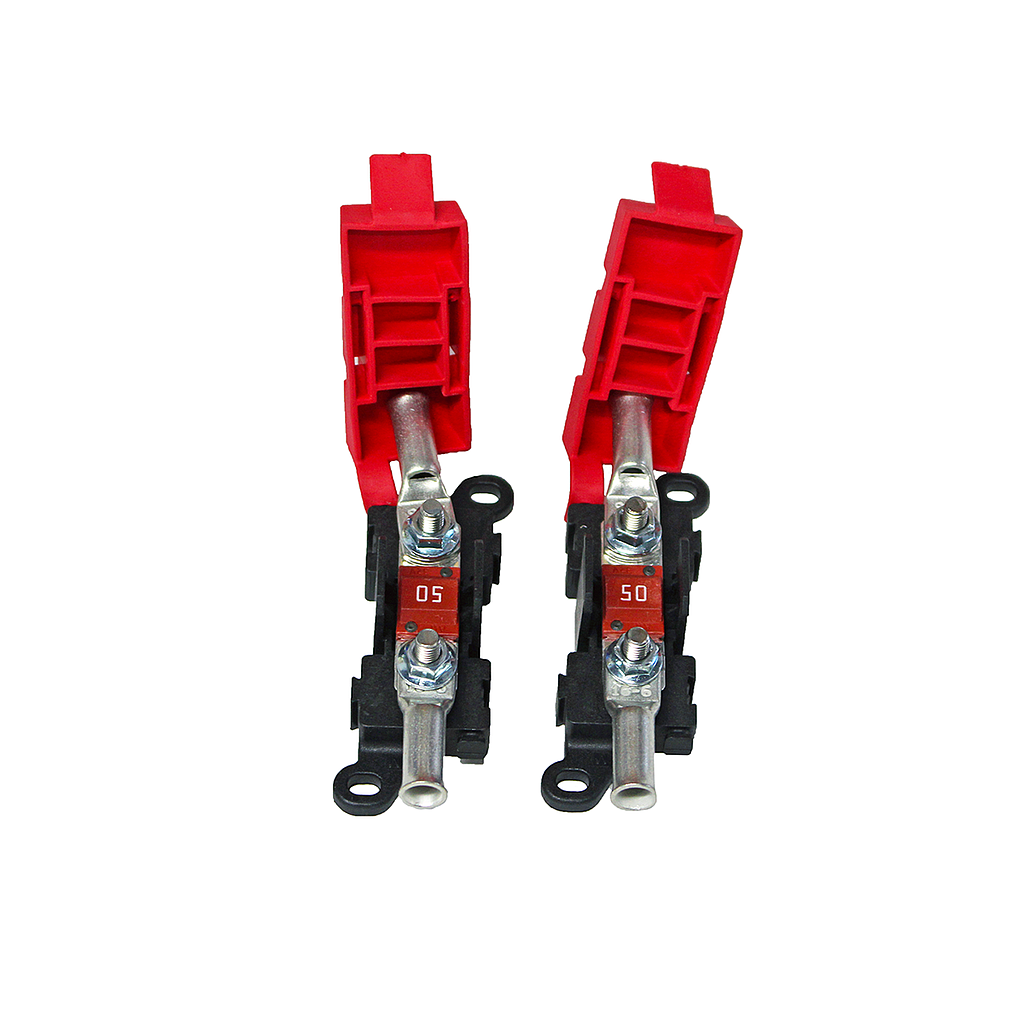

![[50AFUSEKIT] Alvolta AMI/Midi 50A Fuse Kit](/web/image/product.template/11072/image_512/%5B50AFUSEKIT%5D%20Alvolta%20AMI-Midi%2050A%20Fuse%20Kit?unique=f10e80f)
![[50AFUSEKIT] Alvolta AMI/Midi 50A Fuse Kit](/web/image/product.template/11072/hover_image/%5B50AFUSEKIT%5D%20Alvolta%20AMI-Midi%2050A%20Fuse%20Kit?unique=f10e80f)

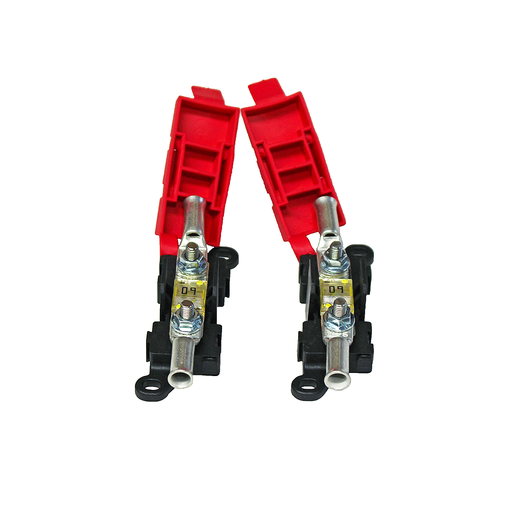

![[60AFUSEKIT] Alvolta AMI/Midi 60A Fuse Kit](/web/image/product.template/11073/image_512/%5B60AFUSEKIT%5D%20Alvolta%20AMI-Midi%2060A%20Fuse%20Kit?unique=41662cd)
