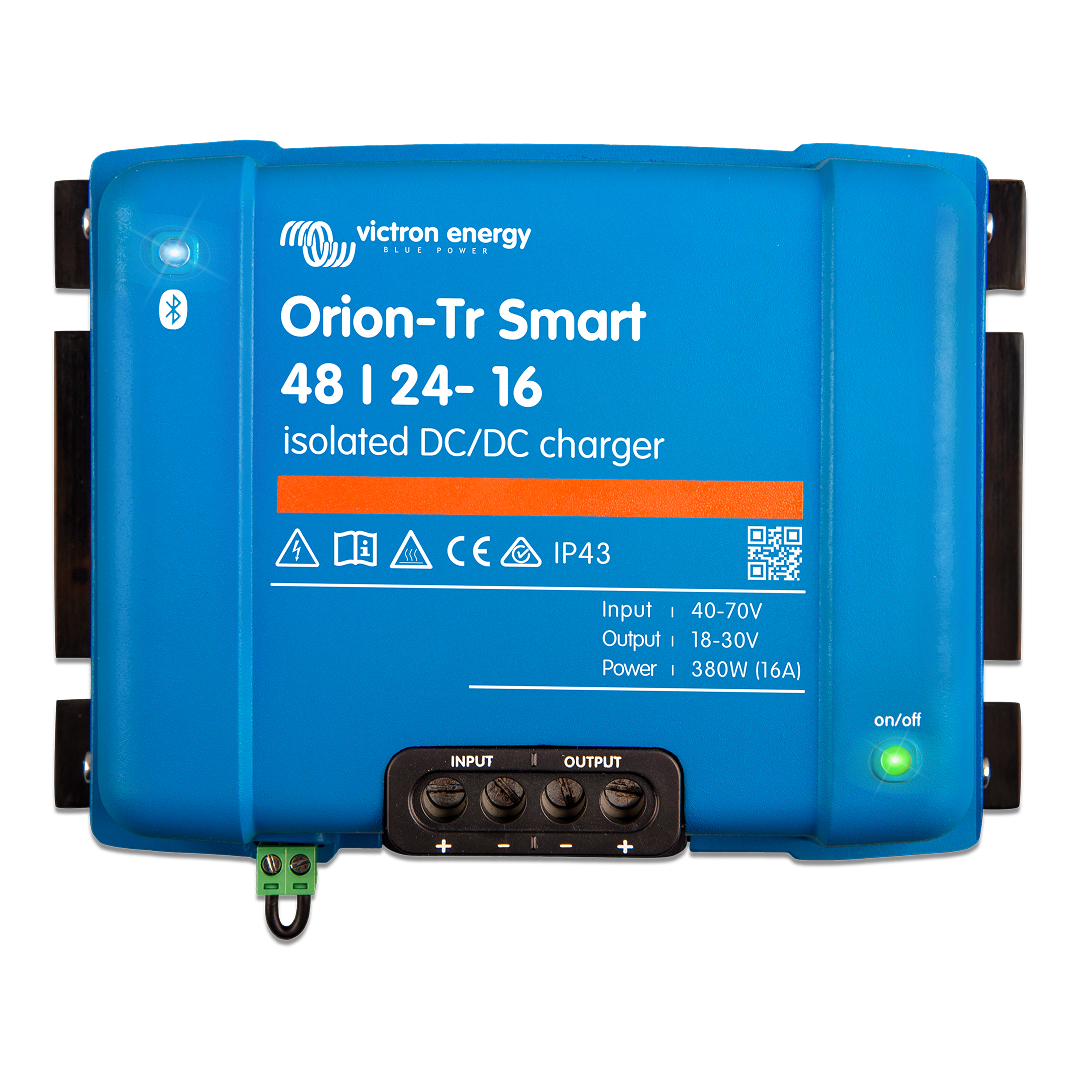

Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC charger

Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC charger

(0 reviews)

The Isolated DC-DC Charger is a professional, adaptive 3-stage battery charger with integrated Bluetooth designed to safely and efficiently charge a 24V service battery system from a 48V alternator or power bank.

$ 379.00 - Inc GST 379.0 AUD $ 379.00 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: DCDC Chargers, DCDC Chargers

SKU: ORI482438120

Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC charger

The Orion-Tr Smart DC-DC charger is an adaptive 3-stage charger (bulk – absorption – float) designed for dual battery systems, such as in vehicles or on boats where the starter battery (hence the alternator) is used to charge the service battery. The name "Smart" comes from its built-in Bluetooth connection, where the charger can be monitored and configured via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. This isolated model allows the input and output to have separate chassis grounds.

The Orion-Tr Smart charger can be used in 12V, 24V or 48V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

manual-Orion-Tr Smart charger.pdf

Download

Datasheet-Orion-Tr Smart charger.pdf

Download

Product Specification

Orion-Tr Smart Chargers Isolated	Orion-Tr 48/24-16A (380 W)
Input voltage range	32-70 V
Under voltage shutdown	28 V
Under voltage restart	30 V
Nominal output voltage	24.2 V
Output voltage adjust range	18-30 V
Output voltage tolerance	+/- 0,2 V
Output noise	2 mV rms
Cont. output current at nominal output voltage and 40 °C	16 A
Max. output current (10 s) at nominal output voltage minus 20 %	25 A
Short circuit output current	40 A
Cont. output power at 25 °C	430 W
Cont. output power at 40 °C	380 W
Efficiency	89%
No load input current	< 80mA
Standby current	Less than 1 mA
Can be used as power supply	Yes, output voltage can be set with Bluetooth
Galvanic isolation	200 VDC between input, output and case
Operating temperature range	-20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity	Max. 95 % non-condensing
DC connection	Screw terminals
Maximum cable cross-section	16 mm² (AWG6)
Weight	1,6 kg (3.5 lb)
Dimensions h x w x d	130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
Protection category	IP43 (electronic components), IP22 (connection area)
Standards: Safety Emission / Immunity Automotive Directive	EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-5
