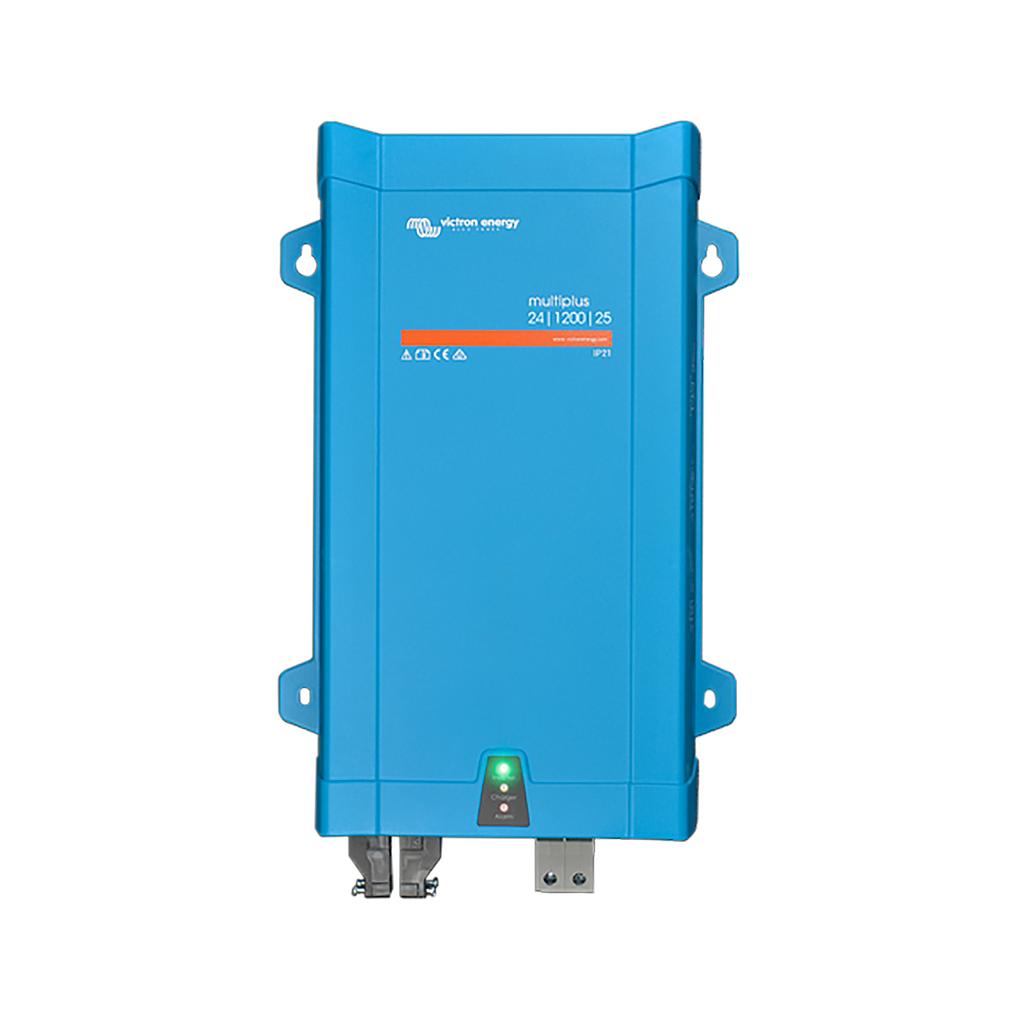

Victron MultiPlus 24/1200/25-16

Features:
- Pure Sine Wave Inverter/Charger
- 24V 1200va Inverter
- 25A Battery Charger
- 16A Automatic Transfer Switch
- Three-Phase and Parallel Capability

$ 777.40 - Inc GST 777.4 in stock AUD $ 777.40

$ 777.40

Brand

This combination does not exist.

ADD TO CART

Brand: Victron

VICTRON

SKU: ANL050

Category: INVERTER CHARGERS Victron Multiplus

Victron MultiPlus 1200VA

Features:

Pure Sine Wave Inverter/Charger
24V 1200va Inverter
25A Battery Charger
16A Automatic Transfer Switch

Three-Phase and Parallel Capability

The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Monitor and control your MultiPlus and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

More Product Features:

Parallel Operation and Three-Phase Capability:

Up to six Multis can operate in parallel to achieve higher power output. In addition to parallel connection, three units can be configured for three-phase output.

High Start-up Power:

Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.

Search Mode:

When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.

Programmable Relay:

By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).

Remote on / off / charger on:

Three pole connector.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

Manual_MultiPlus-500VA-1200VA-EN-NL-FR-DE-ES-IT.pdf

Download

Datasheet_MultiPlus-500VA-2000VA-EN.pdf

Download

Product Specifications

PowerControl / PowerAssist	Yes
Three Phase and parallel operation	Yes
Transfer switch	16 A
Input voltage range	9.5 – 17V 19 – 33V 38– 66V
Output	Output voltage: 230VAC ± 2%, Frequency: 50Hz ± 0.1%
Cont. output power at 25°C	1200 VA
Cont. output power at 25°C	1000 W
Cont. output power at 40°C	900 W
Cont. output power at 65°C	600 W
Peak power	2400 W
Maximum efficiency	93 / 94 / 95%
Zero-load power	10 / 9 / 10 W
Zero-load power in search mode	3 / 3 / 3 W
AC Input	Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz
Charge voltage 'absorption'	14.4 / 28.8 / 57.6 V
Charge voltage 'float'	13.8 / 27.6 / 55.2 V
Storage mode	13.2 / 26.4 /52.8 V
Charge current house battery	50 / 25 / 13 A
Charge current starter battery	1A (12 V and 24 V models only)
Battery temperature sensor	Yes
Programmable relay	Yes
Protection	a – g
VE.Bus communication port	For parallel and three-phase operation, remote monitoring and system integration (RJ45-splitter ASS030065510 needed for 500 / 800 / 1200 VA models)
Remote on-off	On/off/charger only
DIP switches	Yes
Internal DC fuse	200 / 100 / 50 A
Common Characteristics	Operating temp. range: -40 to +65°C (fan-assisted cooling), Humidity (non-condensing): max 95%
Common Characteristics	Material & Colour: Steel/ABS (blue RAL 5012) Protection category: IP 21
Battery-connection	35 / 25 / 10 mm²
230V AC-connection	G-ST18i connector
Weight	8.2 kg
Dimensions	406 x 250 x 100 mm
Safety	EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
Emission Immunity	EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Automotive Directive	ECE R10-5
