Victron MultiPlus 24/1600/40-16

(0 reviews)

24V 1600VA inverter/charger with 40A charger and 16A transfer switch

$ 1,054.90 - Inc GST 1054.9 in stock AUD $ 1,054.90 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaOnline Only

Sunshine CoastIn stock

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: INVERTER CHARGERS, Victron, Multiplus

SKU: PMP242160000

Victron MultiPlus 24/1600/40-16

Features

24V inverter/charger: 1600VA pure sine wave inverter and 40A battery charger in one
Automatic 16A transfer switch: switches to shore or generator power when available
Adaptive multi-stage charging with battery temperature sensor
PowerControl and PowerAssist: limits shore current and boosts it from the battery when needed
Extra 1A output for the starter battery
Parallel and three-phase capable (VE.Bus)
Search mode cuts idle power to 3W

Where to use it

The heart of a 24V power system in caravans, motorhomes, boats and small off-grid or backup systems: runs 230V appliances from the battery and recharges it from shore power or a generator.

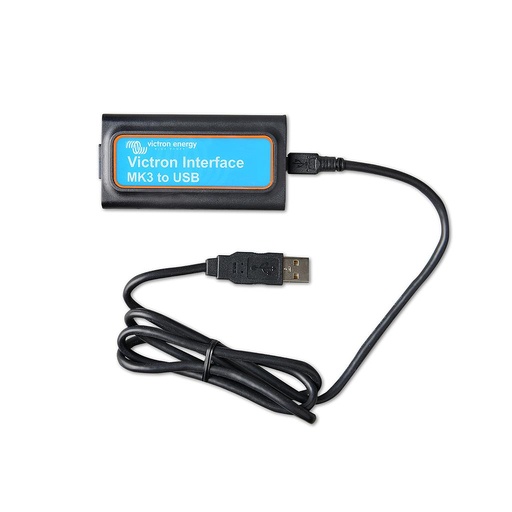

Hard-wire it into the AC circuit (G-ST18i connector). Monitor and configure it with a Cerbo GX, VE.Bus Smart Dongle or MK3-USB.

Dimensions

Dimensions (h x w x d)	470 x 265 x 120 mm
Weight	10.2 kg

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Manual_MultiPlus-500VA-1200VA-EN-NL-FR-DE-ES-IT.pdf

Download

Datasheet_MultiPlus-500VA-2000VA-EN.pdf

Download

Product Specifications

Input voltage range	19-33V
Output	230V AC ±2%, 50 Hz ±0.1%
Continuous output power at 25°C	1600 VA / 1300 W
Continuous output power at 40°C	1100 W
Continuous output power at 65°C	800 W
Peak power	2800 W
Maximum efficiency	94%
Zero-load power	9 W
Zero-load power in search mode	3 W
Transfer switch	16A
PowerControl / PowerAssist	Yes
Three Phase and parallel operation	Yes
Charger AC input	187-265V AC, 45-65 Hz
Charge voltage 'absorption'	28.8V
Charge voltage 'float'	27.6V
Storage mode	26.4V
Charge current house battery	40A
Charge current starter battery	1A
Battery temperature sensor	Yes
Programmable relay	Yes
VE.Bus communication port	Yes (RJ45 splitter ASS030065510 needed for parallel/3-phase on 500/800/1200VA models)
Remote on-off	On/off/charger only
Internal DC fuse	125A
Operating temperature range	-40 to +65°C (fan assisted cooling)
Enclosure	Steel/ABS (blue RAL 5012), IP21
Battery cable (recommended)	35mm²
230V AC-connection	G-ST18i connector
Weight	10.2 kg
Dimensions (h x w x d)	470 x 265 x 120 mm
