Victron MultiPlus 48/500/6-16

Features

  • 48V inverter/charger: 500VA pure sine wave inverter and 6A battery charger in one
  • Automatic 16A transfer switch: switches to shore or generator power when available
  • Adaptive multi-stage charging with battery temperature sensor
  • Parallel and three-phase capable (VE.Bus)
  • Search mode cuts idle power to 3W

Where to use it

The heart of a 48V power system in caravans, motorhomes, boats and small off-grid or backup systems: runs 230V appliances from the battery and recharges it from shore power or a generator.

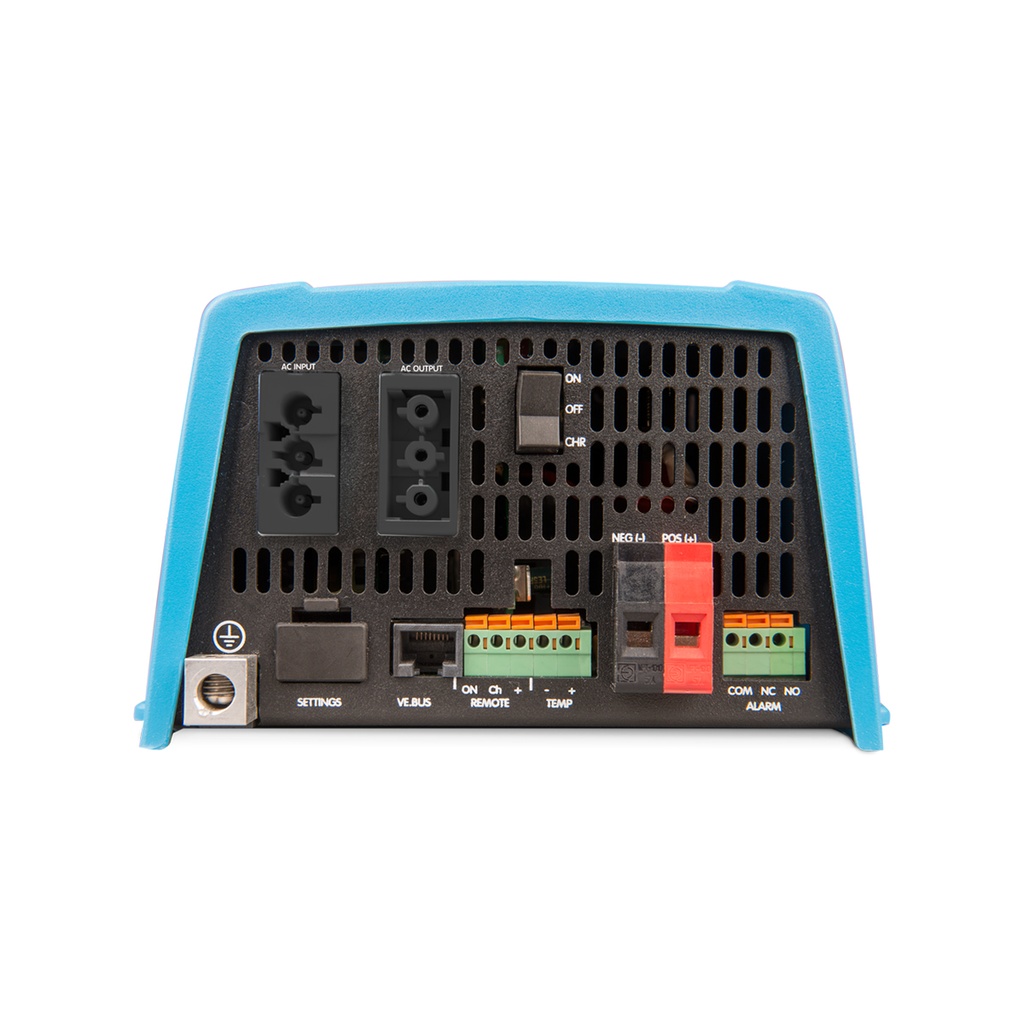

Hard-wire it into the AC circuit (G-ST18i connector). Monitor and configure it with a Cerbo GX, VE.Bus Smart Dongle or MK3-USB.


Dimensions

Dimensions (h x w x d)311 x 182 x 100 mm
Weight4.4 kg

Warranty

  • 5-year warranty
  • Access to Springers Solar's warranty support team
  • Authorised Victron dealer

Applications

Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Manual_MultiPlus-500VA-1200VA-EN-NL-FR-DE-ES-IT.pdf
Download
Datasheet_MultiPlus-500VA-2000VA-EN.pdf
Download

Product Specifications

Input voltage range
38-66V
Output
230V AC ±2%, 50 Hz ±0.1%
Continuous output power at 25°C500 VA / 430 W
Continuous output power at 40°C400 W
Continuous output power at 65°C300 W
Peak power
900 W
Maximum efficiency
92%
Zero-load power
7 W
Zero-load power in search mode
3 W
Transfer switch
16A
PowerControl / PowerAssistNo
Three Phase and parallel operation
Yes
Charger AC input187-265V AC, 45-65 Hz
Charge voltage 'absorption'
57.6V
Charge voltage 'float'
55.2V
Storage mode
52.8V
Charge current house battery
6A
Battery temperature sensor
Yes
Programmable relay
Yes
VE.Bus communication port
Yes (RJ45 splitter ASS030065510 needed for parallel/3-phase on 500/800/1200VA models)
Remote on-off
On/off/charger only
Internal DC fuse
30A
Operating temperature range-40 to +65°C (fan assisted cooling)
EnclosureSteel/ABS (blue RAL 5012), IP21
Battery cable (recommended)10mm²
230V AC-connection
G-ST18i connector
Weight
4.4 kg
Dimensions (h x w x d)311 x 182 x 100 mm

Accessory Products

[ANL-AH] Alvolta ANL Fuse Holder
ALVOLTA
Alvolta ANL Fuse Holder
$ 9.90 $ 9.90 9.9 AUD
Tax Included
SKU: ANL-AH
[ASS030537010] Victron VE.Bus Smart Dongle
VICTRON
Victron VE.Bus Smart Dongle
$ 156.65 $ 156.65 156.65 AUD
Tax Included
SKU: ASS030537010

Alternative Products

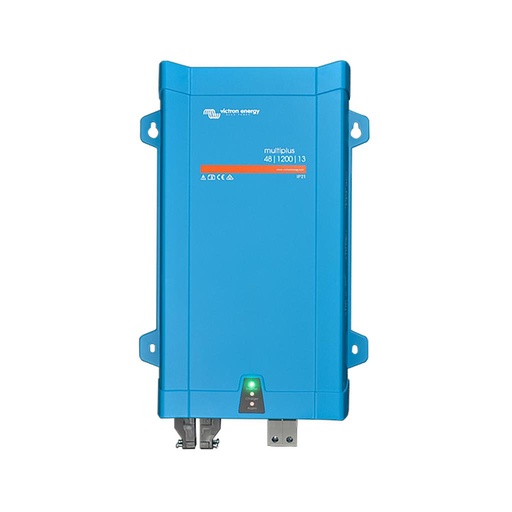

[PMP482120000] Victron MultiPlus 48/1200/13-16
VICTRON
Victron MultiPlus 48/1200/13-16
$ 734.80 $ 734.80 734.8 AUD
Tax Included
SKU: PMP482120000
[PMP482160000] Victron MultiPlus 48/1600/20-16
VICTRON
Victron MultiPlus 48/1600/20-16
$ 792.00 $ 792.00 792.0 AUD
Tax Included
SKU: PMP482160000

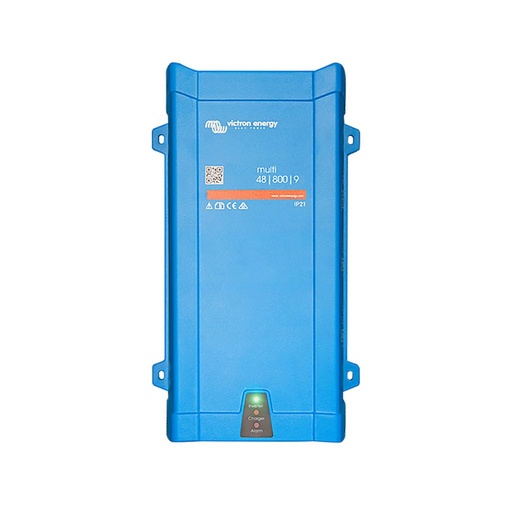

[PMP481800000] Victron MultiPlus 48/800/9-16
