REC 460W Alpha Pure-RX Solar Panel
REC 460W Alpha Pure-RX Solar Panel
REC 460W Alpha Pure-RX Solar Panel
REC 460W Alpha Pure-RX Solar Panel
REC 460W Alpha Pure-RX Solar Panel
REC 460W Alpha Pure-RX Solar Panel

REC 460W Alpha Pure-RX Solar Panel

https://www.springers.com.au/web/image/product.template/17854/image_1920?unique=2982b31
(0 review)

Features:
• 460W Maximum Power Output
• Advanced Cell Technology
• 25-year Product Warranty

This combination does not exist.

REC
Shipping information
30-day returns & refunds
Ships from Brisbane
Solar Panels, Fixed Panels
Datasheet_REC_460W-Alpha-Pure-RX.pdf
Download

Product Specifications

Cell type:80 half-cut REC bifacial, heterojunction cells with lead-free, gapless technology
Glass:3.2 mm solar glass with anti-reflective surface treatment in accordance with EN12150
Backsheet:Highly resistant polymer (black)
Frame:Anodized aluminum (black)
Junction box:4-part, 4 bypass diodes, lead-free IP68 rated, in accordance with IEC62790
Connectors:Stäubli MC4 PV-KBT4/KST4 (4mm²) in accordance with IEC 62852, IP68 only when connected
Cable:4 mm² PV wire, 1.7m + 1.7 m in accordance with EN50618
Dimensions:1728 x 1205 x 30 mm (2.08 m²)
Weight:22.7 kg
Origin:Made in Singapore
Power Output - PMAX (Wp)460
Watt Class Sorting - (W)0/+10
Nominal Power Voltage - VMPP54.9 V
Nominal Power Current - IMPP8.38 A
Open Circuit Voltage - VOC65.3 V
Short Circuit Current - ISC8.88 A
Power Density (W/m²)221
Panel Efficiency (%)22.1
Power Output - PMAX (Wp)350
Nominal Power Voltage - VMPP51.7 V

Nominal Power Current - IMPP

6.77 A

Open Circuit Voltage - VOC61.6 V
Short Circuit Current - ISC7.17 A
Operational temperature:-40°C - +85°C
System voltage:1000 V
Test load (rear):- 4000 Pa (407 kg/m²)
Max series fuse rating:25 A
Max reverse current:25 A

Accessory Products

[C10] Tycab 10mm² Tinned Twin Core Cable
TYCAB AUSTRALIA
Tycab 10mm² Tinned Twin Core Cable
$ 9.90 $ 9.90
SKU:C10
[C6] Tycab 6mm² Tinned Twin Core Cable
TYCAB AUSTRALIA
Tycab 6mm² Tinned Twin Core Cable
$ 6.20 $ 6.20
SKU:C6

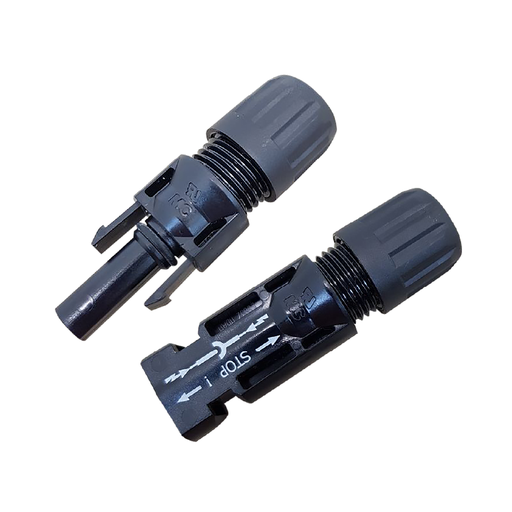

[MC4-PAIR-5] Staubli 5x Pairs Genuine MC4 Plugs
