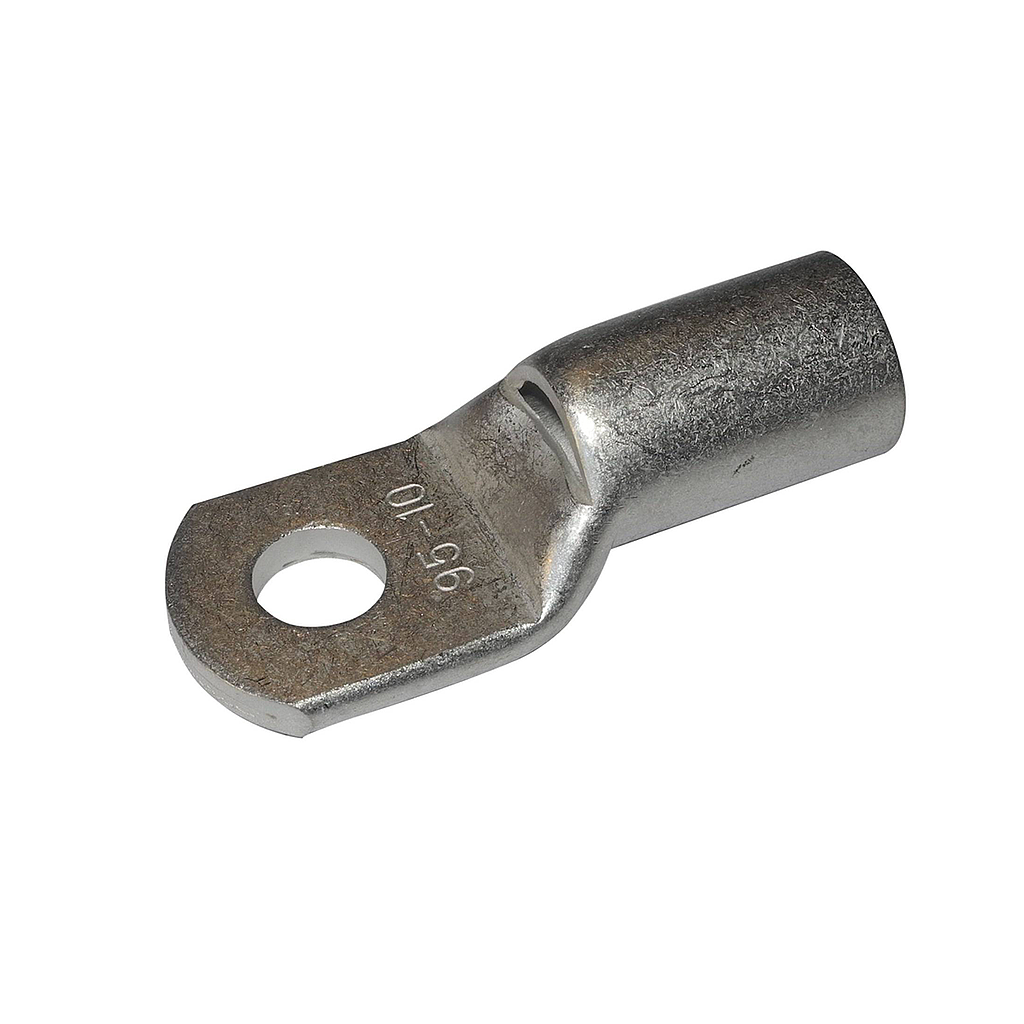

Bellmouth Cable Lug 95mm² X 10mm Stud (5)
Pack of 5
Alvolta Logo

Bellmouth Cable Lug 95mm² X 10mm Stud (5)

https://www.springers.com.au/web/image/product.template/13720/image_1920?unique=fb8fc7e
(0 reviews)
Tinned copper bellmouth cable lugs for 95 mm² cable on an M10 stud. Pack of 5.

$ 28.90 - Inc GST 28.9 in stock AUD $ 28.90 Tax Included

Not Available For Sale

($ 28.90 / Unit)

This combination does not exist.

You have already submitted a query for this product today.
In stock
In stock
In stock
Contact Us
HellermannTyton
Terms and Conditions
30-day money-back guarantee
Ships in 2-3 Business Days (online only products may differ)
Cable & Accessories, Cable & Accessories, Cables & Accessories, Cables & Accessories, Lugs & Connectors
S9510_5

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Bellmouth Cable Lug 95mm² X 10mm Stud (5)

Pack Contents

  • 5 x bellmouth copper cable lugs, 95 mm², M10 stud
  • Price is per pack of 5


Features

  • Supplied in a convenient pack of 5
  • Bellmouth barrel entry makes fine-stranded flexible cable easy to insert without splayed strands
  • Made from 99.9% pure, fully annealed copper so it crimps without cracking
  • Electro-tin plated for corrosion resistance
  • Inspection hole to confirm the cable is fully inserted
  • Complies with AS/NZS 4325 Part 1


Where to use it

Tinned copper cable lugs terminate 95 mm² copper cable onto an M10 stud or bolt, such as battery terminals, busbars, isolators, fuse holders, inverters and chargers. Crimped correctly they give a low-resistance, high-current connection that stays tight under vibration. Ideal for 12V, 24V and 48V DC systems in 4WDs, caravans, boats and off-grid solar and battery installs. The pack of 5 is ideal for larger jobs or keeping spares on hand.


Product Dimensions

  • Pack Quantity: 5 pieces (dimensions below are per lug)
  • Cable Size: 95 mm²
  • Stud Size: M10 (hole 10.2 mm)
  • Total Length (L): 60 mm
  • Barrel Length (L2): 26 mm
  • Palm Width (W): 25 mm
  • Palm Thickness (T): 4 mm
  • Barrel Outer Diameter: 17.4 mm
  • Barrel Inner Diameter: 13.5 mm

Applications

4WD
4WD
RV
RV's
Caravan
Caravans
Off-Grid Systems
Off-Grid Systems
Tiny Houses
Tiny Houses
Cabins
Cabins


No Documents Uploaded

Match two things: the cable size in mm² (for example 16mm² or 50mm²) and the stud or bolt size it fits over (for example M8). The cable size must match the lug barrel exactly so the crimp grips every strand, and the stud size should match your terminal so the lug sits flat and tight.

A bellmouth lug has a flared, funnel-shaped barrel entry. It makes it easy to insert fine-stranded flexible cable, which tends to splay after stripping, without strands catching outside the barrel. A standard (straight barrel) lug has a plain entry and suits regular stranded cable.

Use a lug crimper sized for the cable, such as a hexagonal or indent crimping tool. Hex crimpers give an even, all-round compression that suits tinned copper lugs. Hammer crimpers and pliers give inconsistent crimps that can heat up under high current.

Tin plating protects the copper from oxidation and corrosion, keeping a low-resistance connection over time. It is especially useful in damp, salty or high-humidity environments such as caravans, boats and outdoor battery boxes.

Product Specifications


Brand
HellermannTyton
HT Part No.
CL95-10BM (Art. 924-00658)
Pack Size
5 pieces
Type
Bellmouth copper cable lug
Cable Size
95 mm²
Stud Size
M10
Hole Diameter (FH)
10.2 mm
Total Length (L)
60 mm
Barrel Length (L2)
26 mm
Palm Width (W)
25 mm
Palm Thickness (T)
4 mm
Barrel Outer Diameter (OD)
17.4 mm
Barrel Inner Diameter (ID)
13.5 mm
Material
Annealed copper, 99.9% pure (C11000)
Plating
Electro-tin, 5-10 microns
Conductivity
99.7% IACS
Operating Temperature
-55°C to 155°C
Standard
AS/NZS 4325 Part 1
Barcode
768127466818
