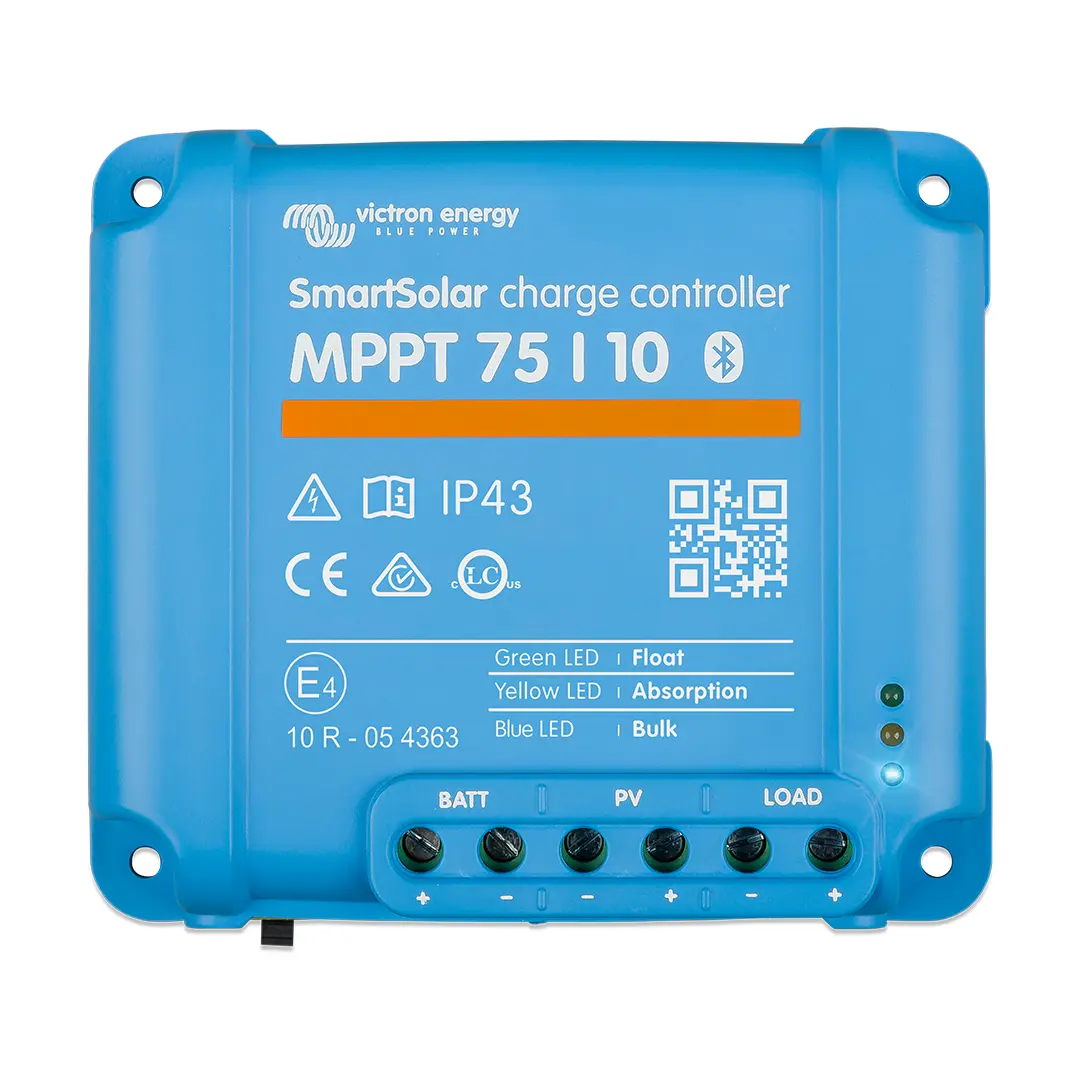

Victron 75/10 SmartSolar MPPT Controller

Victron 75/10 SmartSolar MPPT Controller

(0 review)

75 V / 10 A maximum power point tracking solar charge controller for 12 - 24 V systems

$ 89.00 - Inc GST 89.0 AUD $ 89.00 Tax Included

Brand

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

Brand: Victron

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Solar Controllers, MPPT Charge Controllers, Solar Controllers, MPPT Charge Controllers

Victron 75/10 SmartSolar MPPT Controller

Features

Maximum power point tracking solar charge controller
Built-in Bluetooth for ease of programming & monitoring
75 V
10 A
Suitable for 12 / 24 V systems
Internal temperature sensor
Direct communication port for wired data connection
Over-temperature sensor
Flexible charge algorithm
VE.Direct port
Intelligent battery management
Programmable battery charge algorithm
Additional SmartSolar LCD display available

Where to use it

A Victron SmartSolar MPPT charge controller is used in off-grid solar power systems to maximise energy harvest, particularly in mobile applications like RVs, boats, and campervans, or remote, off-grid cabins.

Engineered for mobile life, they handle vibration and provide efficient charging for 12V/24V systems. Its built-in Bluetooth allows for easy monitoring via the VictronConnect app, making it ideal for systems with variable shading or varying light conditions.

Dimensions

Width	113 mm
Height	100 mm
Depth	40 mm
Weight	0.5 kg

Safety features

EN/IEC 62109-1
UL 1741
CSA C22.2
IP43 rated

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

Datasheet_SmartSolar-charge-controller-MPPT-75-10,-75-15,-100-15,-100-20_48V-EN.pdf

Download

Manual_MPPT_solar_charger_manual-pdf-en.pdf

Download

Product Specifications

Battery voltage (auto-select)	12/24 V
Rated charge current	10 A
Nominal PV power, 12 V	145 W
Nominal PV power, 24 V	290 W
Max. PV short circuit current	13 A
Automatic load disconnect	Yes
Max. PV open circuit voltage	75 V
Peak efficiency	98 %
Self-consumption – load on	12 V: 19 mA 24 V: 16 mA
Self-consumption – load off	12 V: 10 mA 24 V: 8 mA
Charge voltage 'absorption'	14.4 V / 28.8 V (adjustable)
Charge voltage 'float'	13.8 V / 27.6 V (adjustable)
Charge algorithm	multi-stage adaptive
Temperature compensation	-16 mV / °C resp. -32 mV / °C
Max. continuous load current	15 A
Low voltage load disconnect	11.1 V / 22.2 V / 44.4 V or 11.8 V / 23.6 V / 47.2 V or Battery Life algorithm
Low voltage load reconnect	13.1 V / 26.2 V / 52.4 V or 14 V / 28 V / 56 V or Battery Life algorithm
Protection	Output short circuit / Over-temperature
Operating temperature	-30 to +60 °C (full rated output up to 40 °C)
Humidity	95 %, non-condensing
Data communication port	VE.Direct
Colour	Blue (RAL 5012)
Power terminals	6 mm² / AWG10
Protection category	IP43 (electronic components), IP22 (connection area)
Weight	0.5 kg
Dimensions	100 x 113 x 40 mm
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
