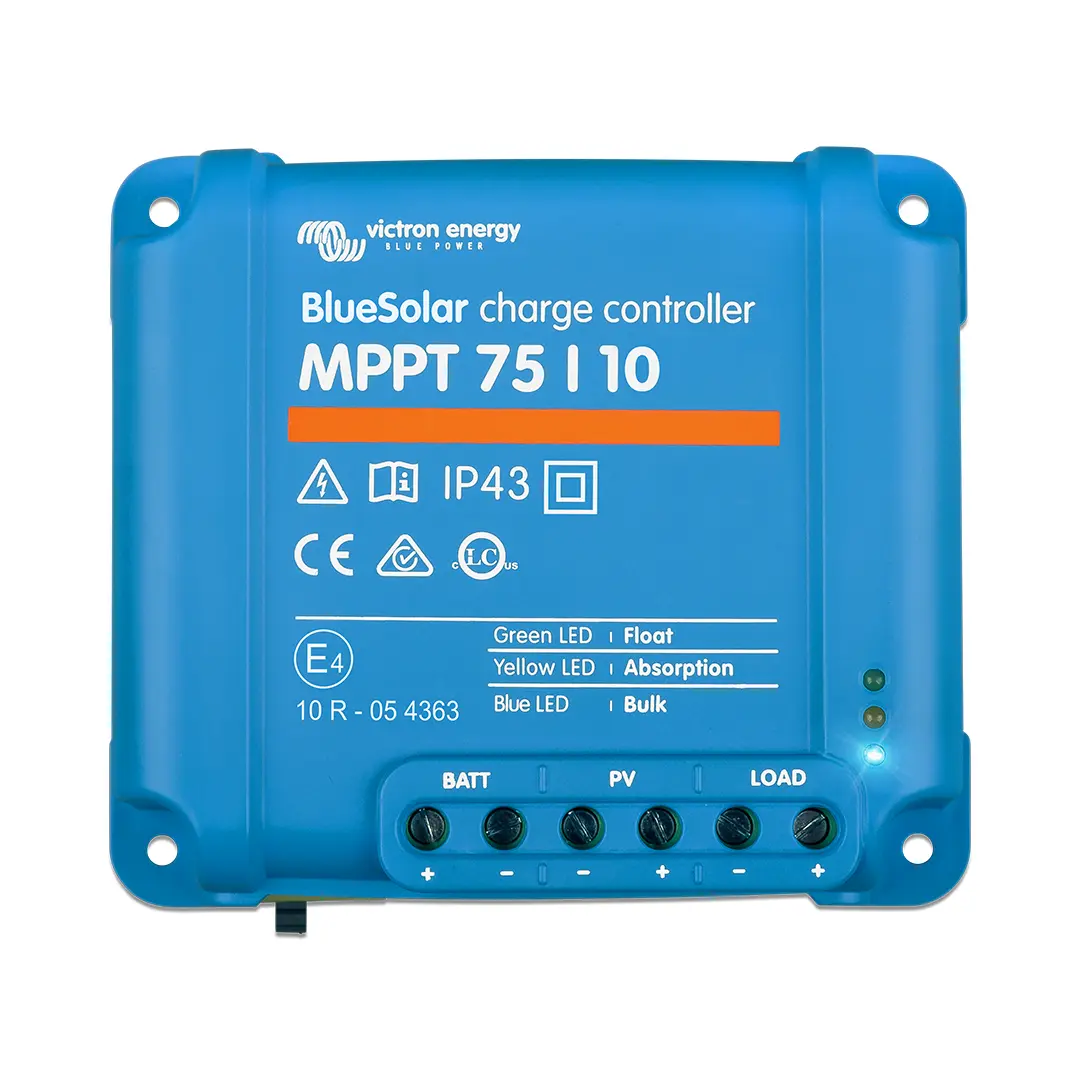

Victron 75/10 BlueSolar MPPT Solar Controller

Victron 75/10 BlueSolar MPPT Solar Controller

(0 reviews)

75 V / 10 A maximum power point tracking solar charge controller for 12 - 24 V systems

$ 69.20 - Inc GST 69.2 in stock AUD $ 69.20 Tax Included

Brand

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastIn stock

Brand: Victron

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Solar Controllers, MPPT Charge Controllers, Solar Controllers, MPPT Charge Controllers

SKU: SCC010010050R

Victron 75/10 BlueSolar MPPT Solar Controller

Features

Maximum power point tracking solar charge controller
75 V
10 A
Suitable for 12 / 24 V systems
Programmable battery charge with intelligent management
Remote monitoring & control
Internal temperature sensor
Direct communication port
Real-time display via GX device or Bluetooth-enabled smartphone*

*A Victron Bluetooth Dongle is required to enable Bluetooth monitoring for this controller. The dongle is also required to allow the controller to be set to Lithium battery parameters, as this controller does not have a rotary switch for this function.

Where to use it

A Victron BlueSolar MPPT charge controller is used in small off-grid solar power systems to maximise and control energy harvest, particularly in mobile applications like RVs, boats, and campervans.

Dimensions

Width	113 mm
Height	100 mm
Depth	40 mm
Weight	0.5 kg

Safety features

EN/IEC 62109-1
UL 1741
CSA C22.2
IP43 rated

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

Manual_29694-MPPT_solar_charger_manual-pdf-en.pdf

Download

Datasheet_Blue-Solar-Charge-Controller-MPPT-75-10,-75-15,-100-15,-100-20_48V-EN-.pdf

Download

Product Specifications

Battery voltage (auto select)	12/24 V
Rated charge current	10 A
Nominal PV power, 12V	145 W
Nominal PV power, 24V	290 W
Max. PV short circuit current	13 A
Automatic load disconnect	Yes
Max. PV open circuit voltage	75 V
Peak efficiency	98%
Self-consumption – load on	12 V: 25 mA
Self-consumption – load off	24 V: 15 mA
Charge voltage 'absorption'	14.4 V / 28.8 V (adjustable)
Charge voltage 'float'	13.8 V / 27.6 V (adjustable)
Charge algorithm	Multi-stage adaptive
Temperature compensation	-16 mV / °C resp. -32 mV / °C
Max. continuous load current	15 A
Low voltage load disconnect	11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm
Low voltage load reconnect	13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm
Protection	Output short circuit / Over temperature
Operating temperature	-30 to +60°C (full rated output up to 40°C)
Humidity	95%, non-condensing
Data communication port	VE.Direct
Colour	Blue (RAL 5012)
Power terminals	6 mm² / AWG10
Protection category	IP43 (electronic components), IP22 (connection area)
Weight	0.5 kg
Dimensions	100 x 113 x 40 mm
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
