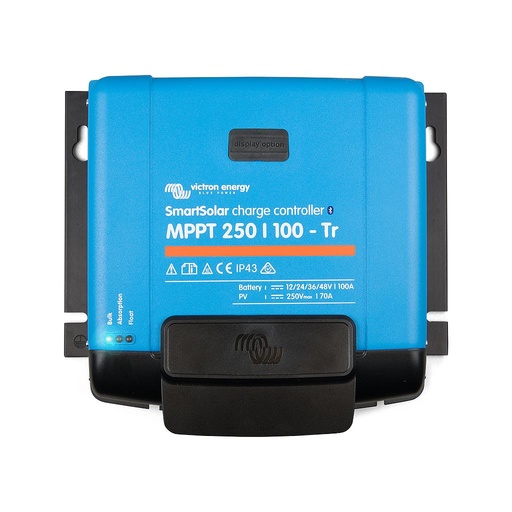

Victron SmartSolar MPPT 250/100 Tr VE.Can

Victron SmartSolar MPPT 250/100 Tr VE.Can

(0 reviews)

250V / 100 A MPPT solar charge controller with Bluetooth and VE.Can for 12-48V systems

$ 969.60 - Inc GST 969.6 in stock AUD $ 969.60 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Solar Controllers, MPPT Charge Controllers, Solar Controllers, MPPT Charge Controllers

SKU: SCC125110412

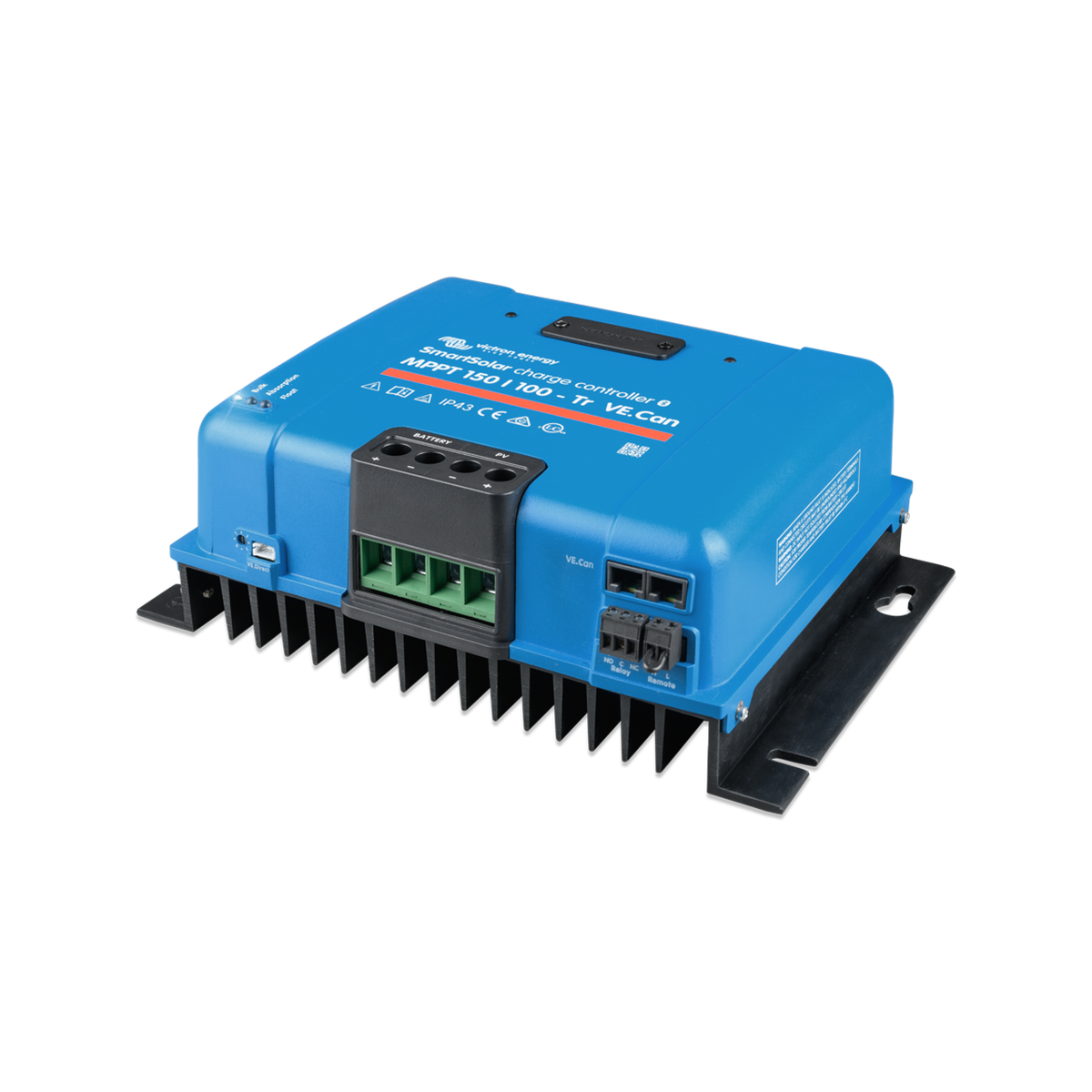

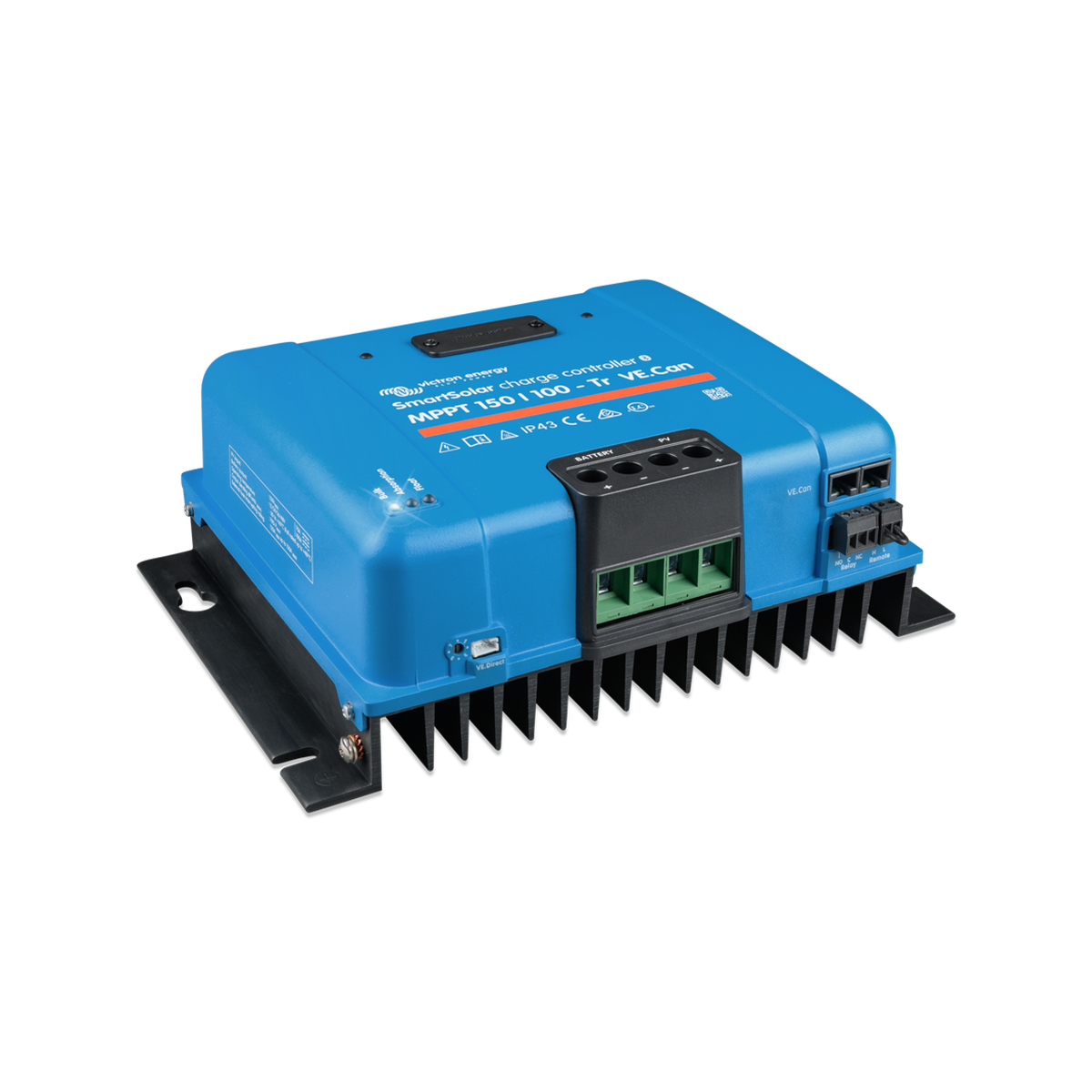

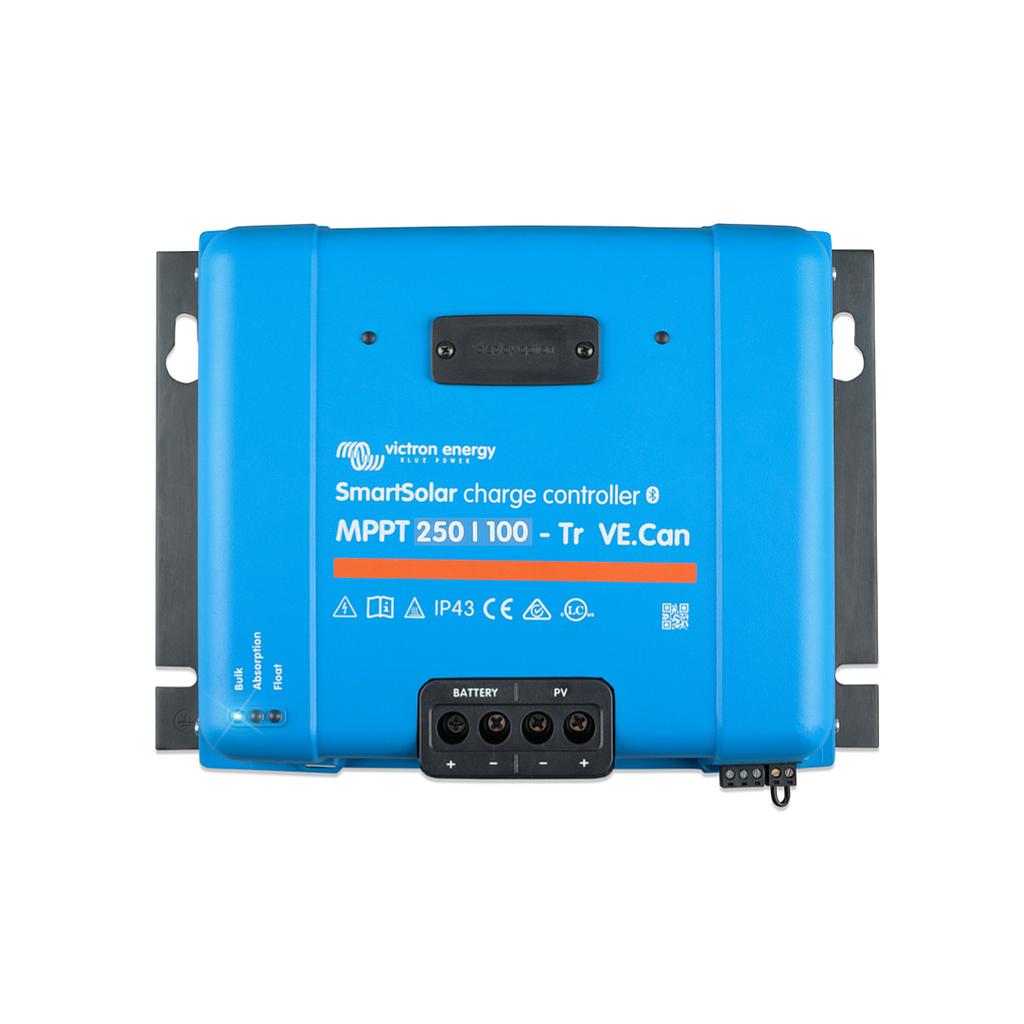

Victron SmartSolar MPPT 250/100 Tr VE.Can

Features

250V / 100 A MPPT solar charge controller
Suits 12, 24, 36 and 48V batteries (12/24/48V auto-select, 36V set manually)

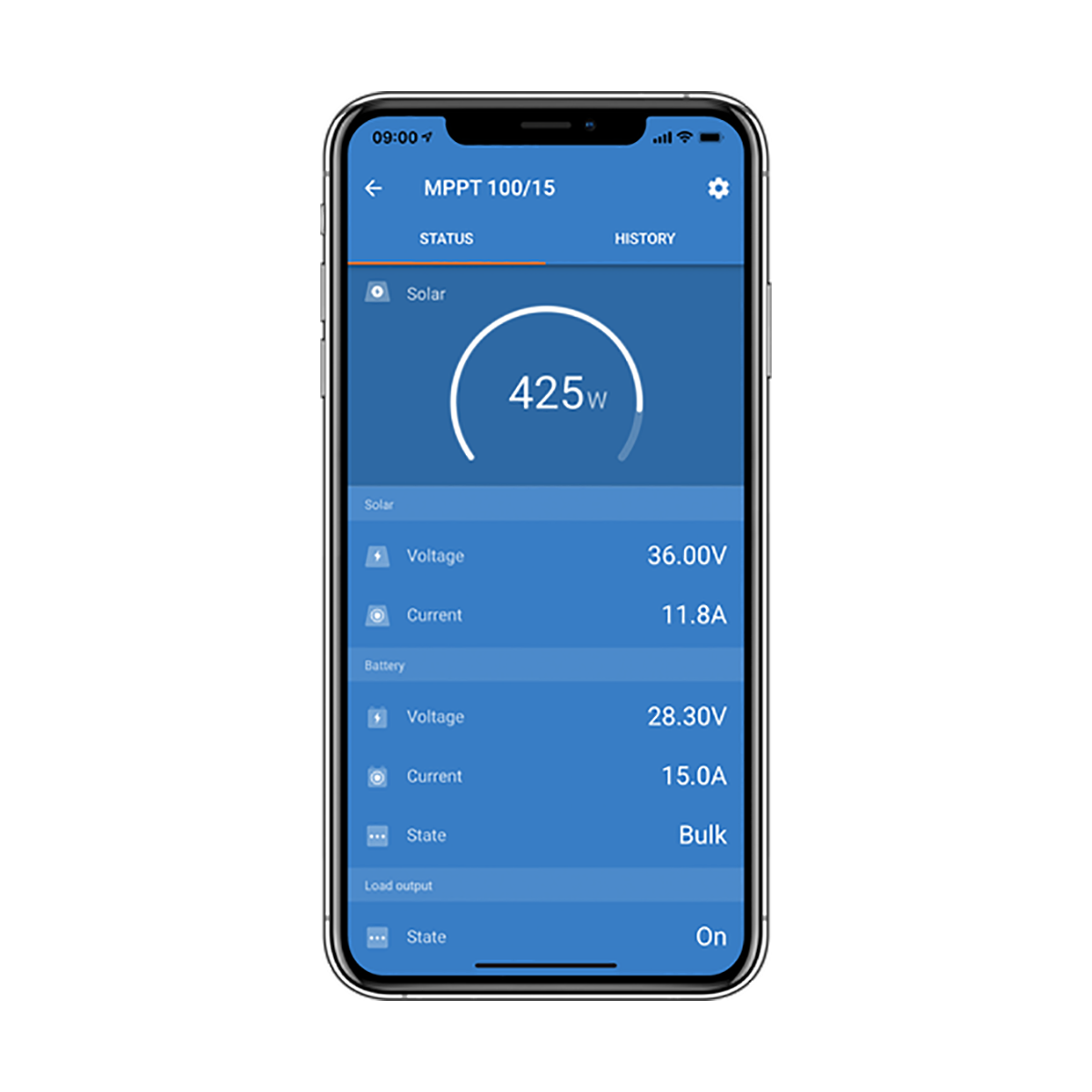

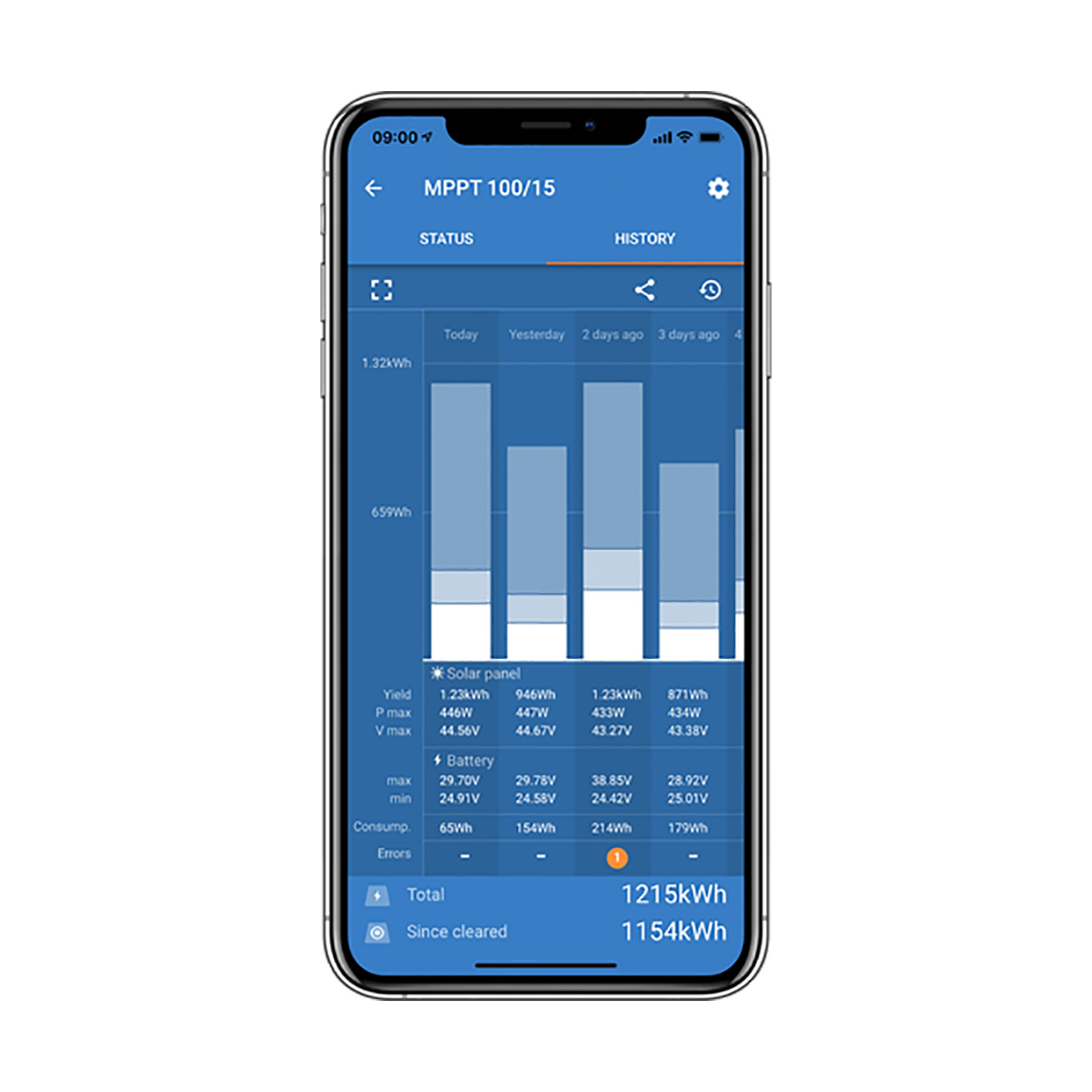

Built-in Bluetooth: set up and monitor with VictronConnect
VE.Can and VE.Direct ports for GX devices and monitoring
Up to 99% efficiency
Ultra-fast maximum power point tracking, good for partial shade
Up to 5800 W of PV at 48V
Programmable relay and remote on/off
Sync up to 25 units in parallel over VE.Can (or 10 over Bluetooth)

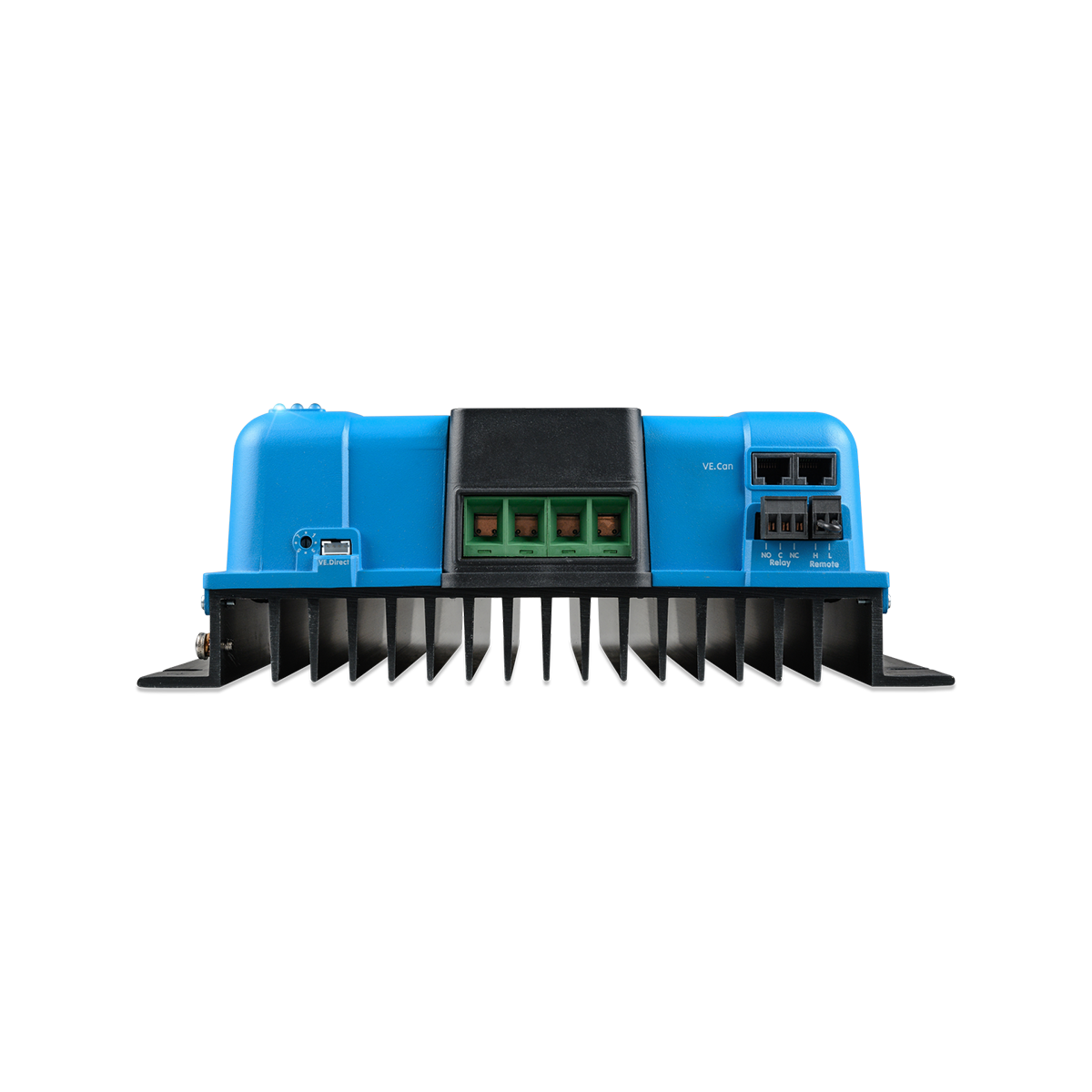

Tr screw terminals (35 mm² PV and battery)

Where to use it

The SmartSolar 250/100 Tr VE.Can suits large off-grid and backup systems such as homes, farms, sheds and commercial sites, where a big array charges a 48V battery bank.

The 250V input lets you wire more panels in series to keep cable sizes and losses down, and VE.Can lets several controllers work together as one system with a GX device.

Dimensions

Height	216 mm
Width	295 mm
Depth	103 mm
Weight	4.5 kg

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Manual_SmartSolar-charge-controller-MPPT-150-70-to-150-100-&-250-70-to-250-100-VE.Can-EN-NL-FR-DE-ES-SE-IT-.pdf

Download

Datasheet_SmartSolar-charge-controller-MPPT-250-70-up-to-250-100-VE.Can-EN.pdf

Download

Product Specifications

Battery voltage	12/24/48 V Auto-Select (36V: manual)
Rated charge current	100A
Nominal PV power, 12V	1450W
Nominal PV power, 24V	2900W
Nominal PV power, 36V	4350W
Nominal PV power, 48V	5800W
Max. PV short circuit current	70A (max 30A per MC4 conn.)
Maximum PV open circuit voltage	250V absolute maximum coldest conditions 245V start-up and operating maximum
Maximum efficiency	99%
Self-consumption	Less than 35 mA @ 12V / 20 mA @ 48V
Charge voltage 'absorption'	Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'float'	Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'equalization'	Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable)
Charge algorithm	Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
Temperature compensation	-16 mV / -32 mV / -64 mV / °C
Protection	PV reverse polarity / Output short circuit / Over temperature
Operating temperature	-30 to +60 °C (full rated output up to 40 °C)
Humidity	95 %, non-condensing
Maximum altitude	5000 m (full rated output up to 2000 m)
Environmental condition	Indoor, unconditioned
Pollution degree	PD3
Data communication	VE.Can, VE.Direct and Bluetooth
Remote on/off	Yes (2 pole connector)
Programmable relay	DPST AC rating: 240 VAC / 4A DC rating: 4A up to 35 VDC, 1A up to 60 VDC
Parallel operation	Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
Colour	Blue (RAL 5012)
PV terminals	35 mm² / AWG2
Battery terminals	35mm² / AWG2
Protection category	IP43 (electronic components), IP22 (connection area)
Weight	4.5 kg
Dimensions	216 x 295 x 103mm
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
