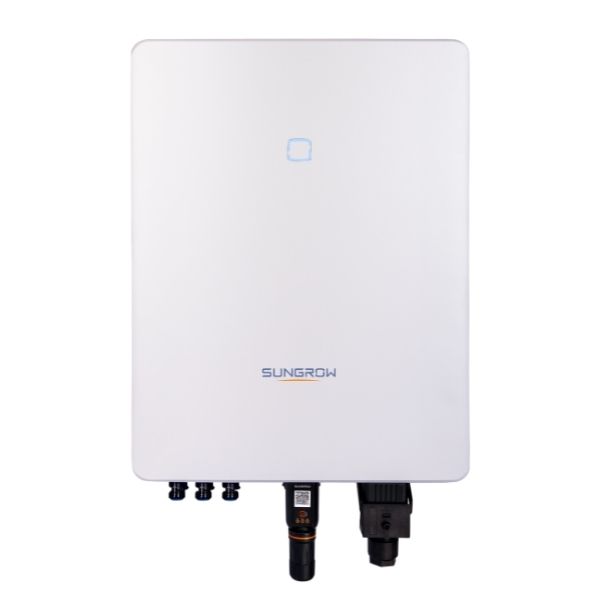

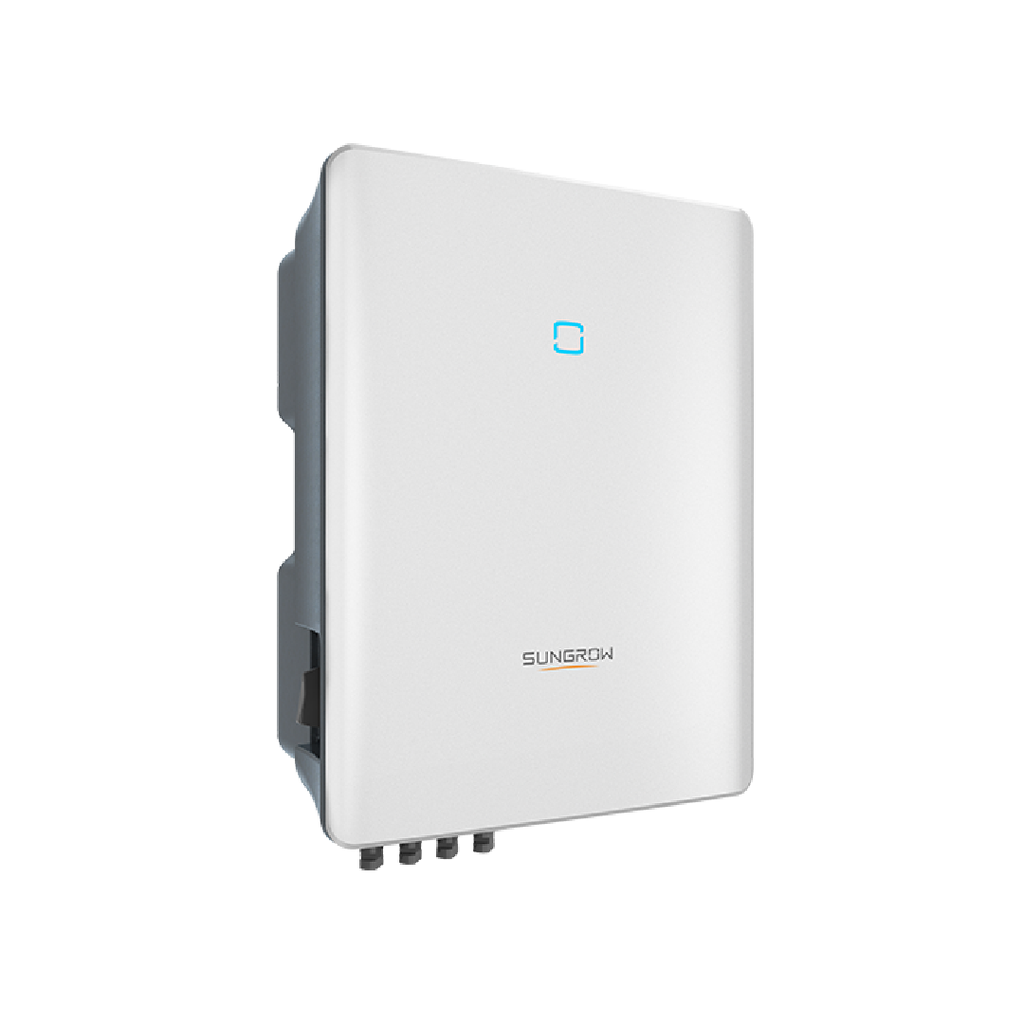

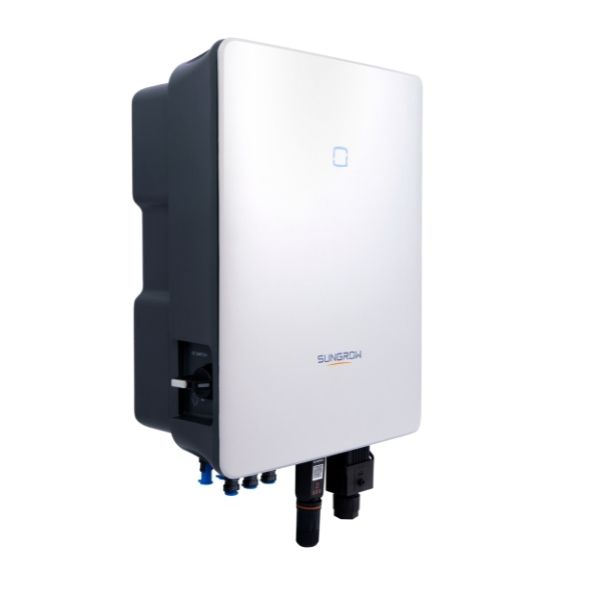

Sungrow 8kW RT Three-Phase Solar Inverter

Sungrow 8kW RT Three-Phase Solar Inverter

(0 reviews)

Sungrow 8kW three-phase dual-MPPT solar inverter, IP65

$ 2,399.00 - Inc GST 2399.0 in stock AUD $ 2,399.00 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

SUNGROW

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: SOLAR, Grid Inverters

SKU: SG8RT

Sungrow 8kW RT Three-Phase Solar Inverter

Features:

8kW three-phase grid-connected string inverter
Dual MPPT for panels on more than one roof face
Recommended max PV input 12 kWp (up to 150% oversizing)
Max PV input voltage 1100V
IP65 rated for indoor or outdoor installation
WLAN, Ethernet and RS485 communication; iSolarCloud app monitoring

Where to use it

Homes and small businesses on three-phase power wanting a reliable grid-tied solar system. Installed by an accredited solar installer.

Dimensions

Dimensions	370 x 480 x 195mm
Weight	18kg

Warranty

Sungrow manufacturer's warranty (see the attached warranty sheet)
Access to Springers Solar's warranty support team

Applications

More about Sungrow:

Sungrow Power Supply Co. Ltd. is one of the world’s most bankable inverter brands with over 405GW installed worldwide as of June 2023. Founded in 1997 by University Professor Cao Renxian, Sungrow is a leader in the research and development of solar inverters with the largest dedicated R&D team in the industry and a broad product portfolio offering PV inverter solutions and energy storage systems for utility-scale, commercial & industrial, and residential applications, as well as internationally recognized floating PV plant solutions, NEV driving solutions, EV charging solutions and renewable hydrogen production systems. With a strong 26-year track record in the PV space, Sungrow products power over 150 countries worldwide.

Datasheet_SG5-7-8-10RT_Inverter.pdf

Download

Manual_SG3-20RT_Inverter.pdf

Download

Product Specifications

Sungrow SG8RT Solar Inverter
Input (DC)
Recommended Maximum PV Input Power	12 kWp
Maximum PV Input Voltage	1100V
Minimum PV Input Voltage/ Startup Input Voltage	180V / 180V
Rated PV Input Voltage	600V
MPP Voltage Range	160 - 1000V
No. of Independent MPP Inputs	2
No. of PV Strings Per MPPT	2/1
Maximum PV Input Current	37.5A (25A / 12.5A)
Maximum DC Short-Circuit Current	54A (36A / 18A)
Maximum Current for DC Connector	30A
Output (AC)
Rated AC Output Power	8000 W
Maximum AC Output Apparent Power	8000 VA
Rated AC Output Apparent Power	8000 VA
Maximum AC Output Current	12.2A
Rated AC Output Current (at 230V)	11.6A
Rated AC Voltage	3 / N / PE, 230 / 400 V
AC Voltage Range	180V – 276 V / 311 V – 478 V
Rated Grid Frequency	50 Hz / 60 Hz
Grid Frequency Range	45 – 55 Hz / 55 – 65 Hz
Harmonic (THD)	< 3 % (at rated power)
Power Factor at Rated Power / Adjustable Power Factor	> 0.99 / 0.8 leading - 0.8 lagging
Feed-in Phases / Connection Phases	3 / 3-N-PE
Efficiency
Maximum Efficiency	98.5%
Protection
Grid Monitoring	Yes
DC Reverse Polarity Protection	Yes
AC Short-Circuit Protection	Yes
Leakage Current Protection	Yes
Surge Protection	DC type II / AC type II
Ground Fault Monitoring	Yes
DC Switch	Yes
PV String Current Monitoring	Yes
Arc Fault Circuit Interrupter (AFCI)	Yes
PID Recovery Function	Yes
General Data
Dimensions	370 x 480 x 195mm
Weight	18kg
Mounting Method	Wall-mounting bracket
Topology	Transformerless
Degree of Protection	IP65
Corrosion	C5
Operating Ambient Temperature	-25°C to +60°C
Allowable Relative Humidity Range (Non-Condensing)	0 - 100%
Cooling Method	Natural cooling
Maximum Operating Altitude	4000m
Display	LED
Communication	WLAN / Ethernet / RS485 / DI / DO

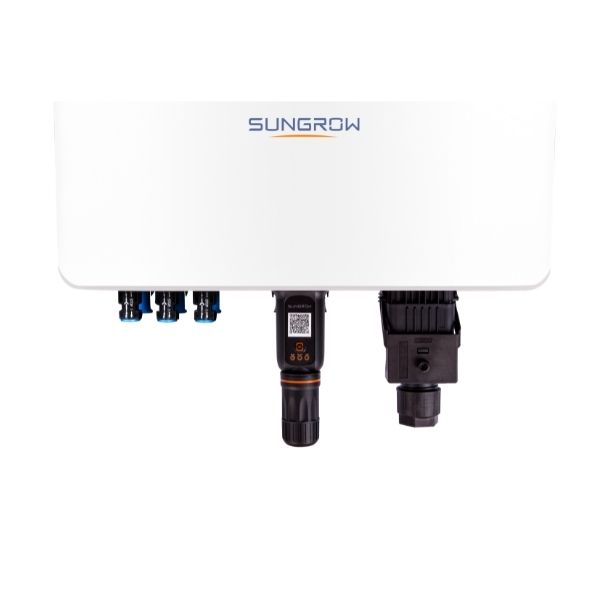

DC Connection Type	MC4 (Max. 6 mm²)
AC Connection Type	Plug and play connector
Compliance	IEC 62109-1/2, AS/NZS 4777.2:2020
Country of Manufacture	China
