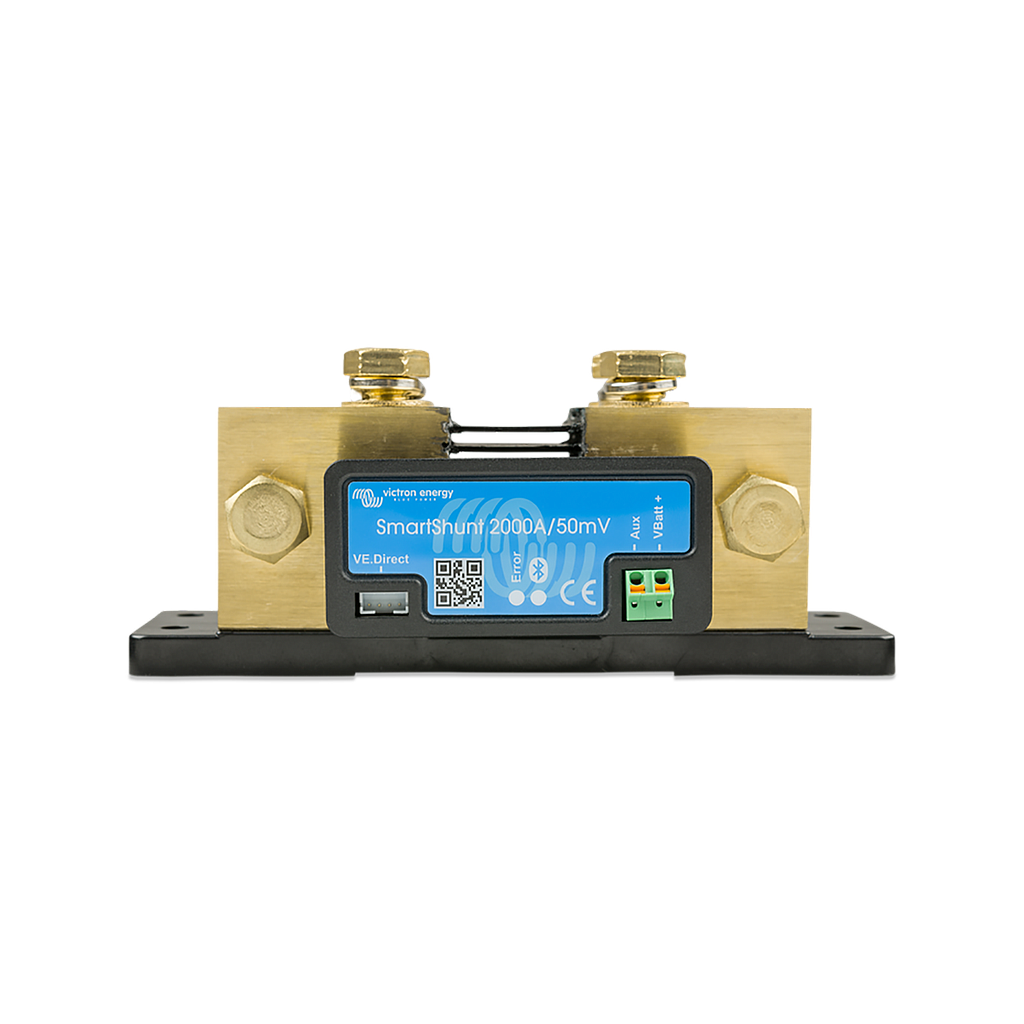

Victron SmartShunt 2000A

(0 review)

All-in-one battery monitoring device with built-in Bluetooth

$ 346.10 - Inc GST 346.1 AUD $ 346.10

Brand

This combination does not exist.

ADD TO CART Buy now

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

Brand: Victron

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: MONITORING

Victron SmartShunt 2000A

Features

All-in-one battery monitor
Built-in Bluetooth
Easy to program and monitor
In-app battery insights
99.6% accuracy
Suitable up to 70V DC
Works with lithium, AGM & flooded batteries

The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as a display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet), and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively, the SmartShunt can be connected and read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth and a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

The SmartShunt is available in 300A, 500A, 1000A and 2000A.

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

Manual_SmartShunt.pdf

Download

Datasheet_SmartShunt.pdf

Download

Product Specifications

SmartShunt 2000A
Supply Voltage Range	6.5 - 70 V DC
Current Draw	< 1 mA
Input Voltage Range, Auxiliary Battery	6.5 - 70 V DC
Battery Capacity (Ah)	1 - 9999 Ah
Operating Temperature Range	-40 - +50°C
Measures voltage of second battery, or temperature, or midpoint	Yes
Temperature Measurement Range	-20 - +50°C
VE.Direct Communication Port	Yes
Resolution & Accuracy
Current	± 0.01 A
Voltage	± 0.01 V
Amp Hours	± 0.1 Ah
State of Charge (0-100%)	± 0.1%
Time to go	± 1 min
Temperature (if an optional temperature sensor is connected)	± 1 °C (0 – 50 °C)
Accuracy of Current Measurement	± 0.4%
Accuracy of Voltage Measurement	± 0.3%
Offset	Less than 40mA
Installation & Dimensions
Protection Category	IP21
Shunt Connection Bolts	M10
Dimensions	68 x 168 x 100 mm
Standards
Safety	EN 60335-1
Emission / Immunity	EN-IEC 61000-6-1 EN-IEC 61000-6-2 EN-IEC 61000-6-3
Automotive	EN 50498
Accessories
Cables (included)	Two cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection
Temperature sensor	Optional (ASS000100000)
A note regarding the range of the Bluetooth signal	The shunt and the electric cables do negatively influence the range of the Bluetooth signal. The resulting range of 10-15 meter is however satisfactory in most cases. The proximity of other electrically conducting elements, such as the metal chassis of a vehicle or seawater around the hull if a boat, may reduce the range of the Bluetooth signal to an unacceptable level. The solution in such a case is to add a VE.Direct Bluetooth Dongle (ASS030536011) to the system, and to switch off Bluetooth in the SmartShunt.
Stored Trends
Data stored	Battery voltage, Current, State of Charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage).
Number of days trends data is stored	46
