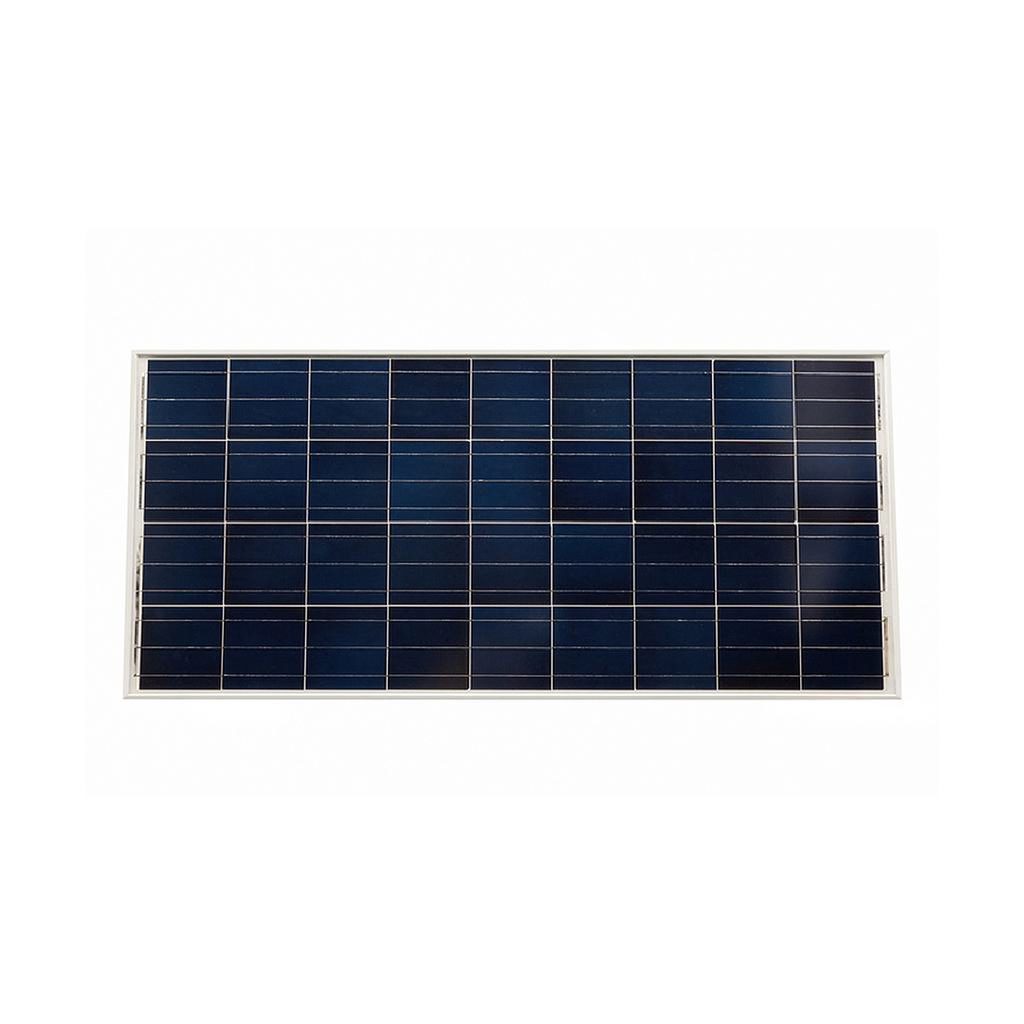

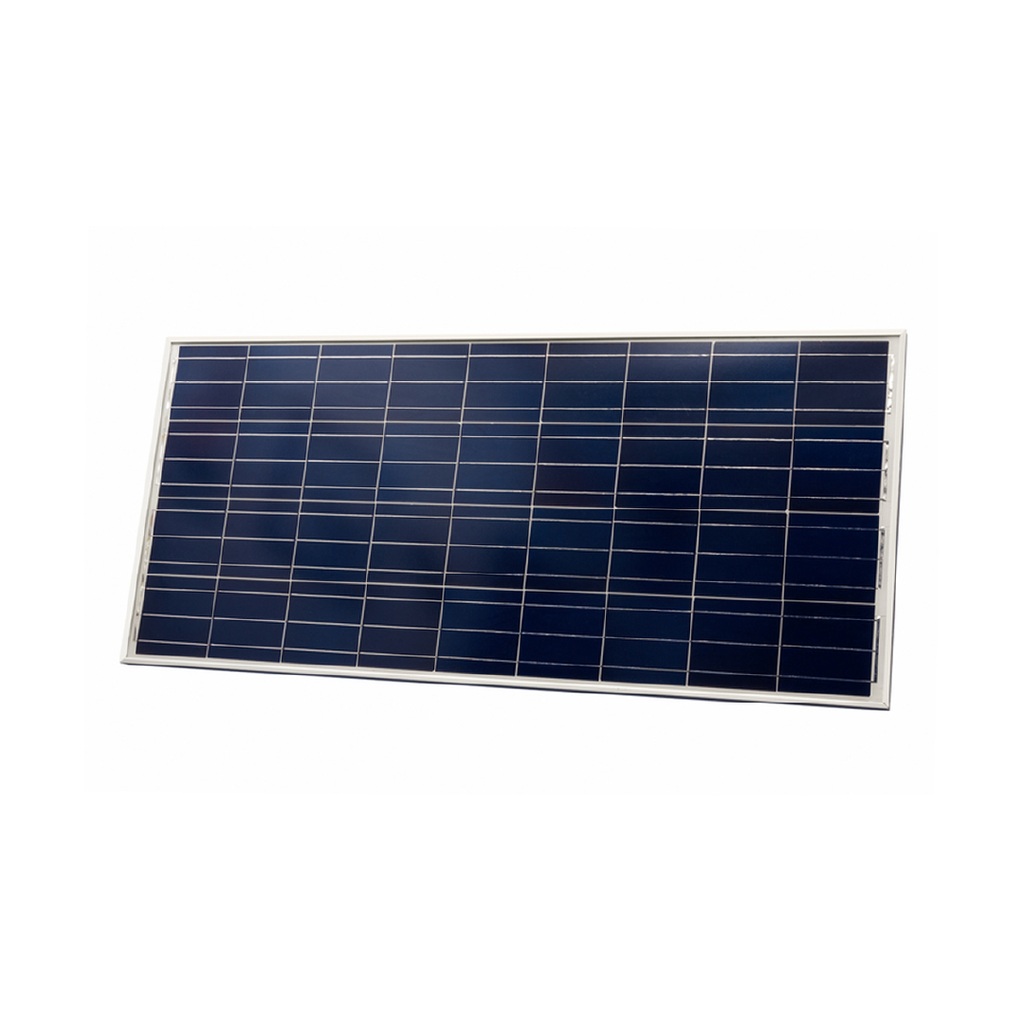

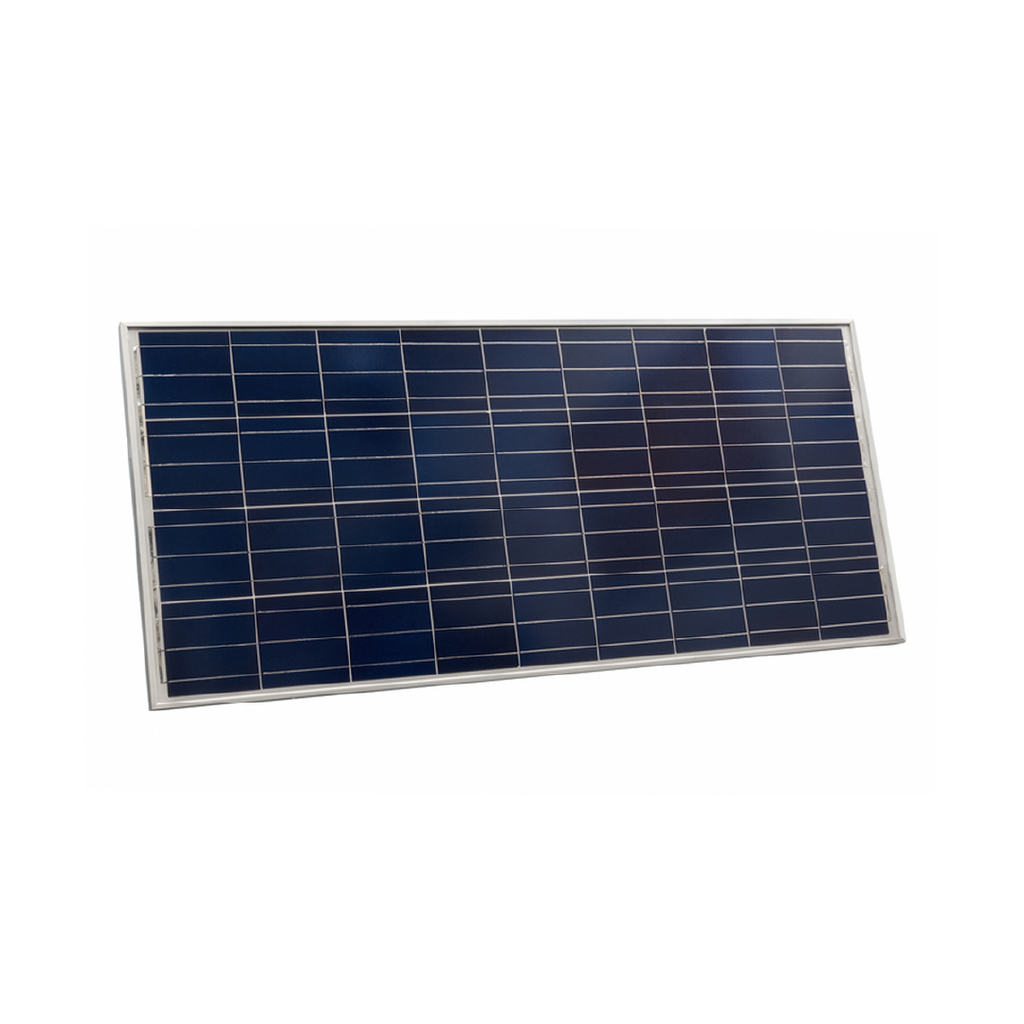

Victron 12V 115W Poly Solar Panel

Features:
• 115W Polycrystalline Solar Panel
• Triple-Layer Backsheet
• 1015 x 668 x 30mm

$ 189.97 - Inc GST 189.97 in stock AUD $ 189.97

$ 189.97

Brand

This combination does not exist.

ADD TO CART

Brand: Victron

VICTRON

SKU: ANL050

Category: Solar Panels Fixed Panels

Victron 12V 115W Poly Solar Panel

Features:

Polycrystalline Solar Panel
Silver Anodized Aluminium Frame
Low Voltage-Temperature Coefficient
Triple-Layer Backsheet
12V 115W

1015 x 668 x 30mm

Victron solar panels are made using high-quality Polycrystalline cells. Victron provides a full range of solar panel modules ranging from 20W - 360W. They are designed for charging deep cycle batteries, for example in vehicles and boats, motor homes, caravans, camping, marine or any other systems with a 12V battery or battery bank.

Solar panels can be utilised to extend battery run time when powering multiple accessories. A number of factors can influence this, which include the time of year, weather conditions, battery capacity and how long you run your appliances. It's important to oversize your solar array (where space allows) so that on a good day your solar panels will be able to fully charge your batteries and keep your loads running whilst free camping.

*Note the Victron 12V range of solar panels is suitable for Charging 12V battery systems when using a PWM or MPPT Controller.

More Product Features:

Low voltage-temperature coefficient enhances high-temperature operation.
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-year limited warranty on power output and performance.
5-year limited warranty on materials and workmanship.
Sealed, waterproof, multifunctional junction box gives a high level of safety.
High-performance bypass diodes minimize the power drop caused by shade.
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
Pre-wired quick-connect system with PV-ST01 connectors.
*Images are for display purposes only

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

Manual_Installation-BlueSolar-Panels-EN-NL-FR-DE-ES-SE.pdf

Download

Datasheet_BlueSolar-Polycrystalline-Panels-EN.pdf

Download

Product Specifications

12V 115W Poly Solar Panel
Module	SPP041151200
Nominal Power (± 3% tolerance)	115W
Cell Type	Polycrystalline
Number of Cells in Series	36
Maximum System Voltage	1000V
Temperature Coefficient of PMPP (%)	-0.45/°C
Temperature Coefficient of Voc (%)	-0.35/°C
Temperature Coefficient of Isc (%)	+0.04/°C
Temperature Range	-40°C to +85°C
Surface Maximum Load Capacity	200 kg/m²
Allowable Hail Load	23 m/s, 7.53 g
Junction Box Type	PV-LH0808
Length of Cable/ Connector	900 mm / MC4
Output Tolerance	+/-3%
Frame	Aluminium
Product Warranty	5 Years
Warranty on Electrical Performance	10 years 90% + 25 years 80% of power output
Dimensions	1015 x 668 x 30mm
Net Weight	8kg
Electrical Data Under STC
Nominal Power (PMPP)	115W
Maximum Power Voltage (VMPP)	18.9V
Maximum Power Current (IMPP)	6.08A
Open Circuit Voltage (Voc)	22.73V
Short Circuit Current (Isc)	6.56A
