Victron Busbar 600A 4P + Cover

Victron Busbar 600A 4P with Cover

Features:

• 150 Amps / 70 Volts
• Stainless Steel
• 4 High Current Connections
• 4 High Current Connections

• Includes Cover

Victron busbars - 150, 250 & 600 amps:

Victron busbars are used for high-current distribution and at the same time they provide connections for batteries and/or DC equipment. We offer a number of busbars with different current ratings and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

​

Busbars are used to consolidate multiple wires or feed multiple circuits. Inserted moulded stainless steel studs eliminate the need for securing nuts and allow high torquing for excellent electrical contact. Raised bus provides easy access to multiple wires on a single base. Mounting holes eliminate accidental shorts to aluminium and steel mounting surfaces. They are also a neat and tidy, yet professional way of cleaning up your battery compartment so that don't have as many cables on your battery terminals.

Available models:

VBB115040020: 150A / 70V - 4 high current connections

VBB115060020: 150A / 70V - 6 high current connections

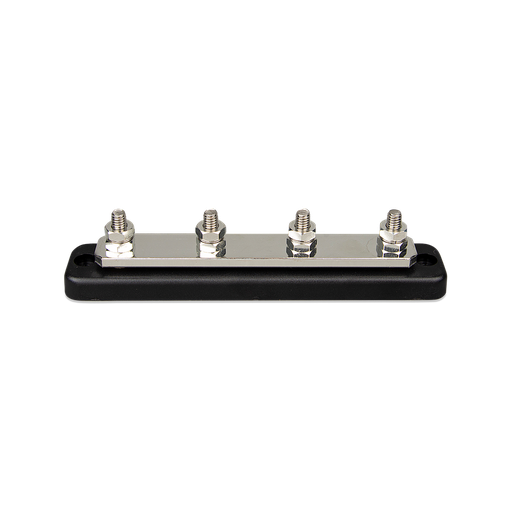

VBB125040010: 250A / 70V - 4 high current connections

VBB160040010: 600A / 70V - 4 high current connections and 8 low current connections

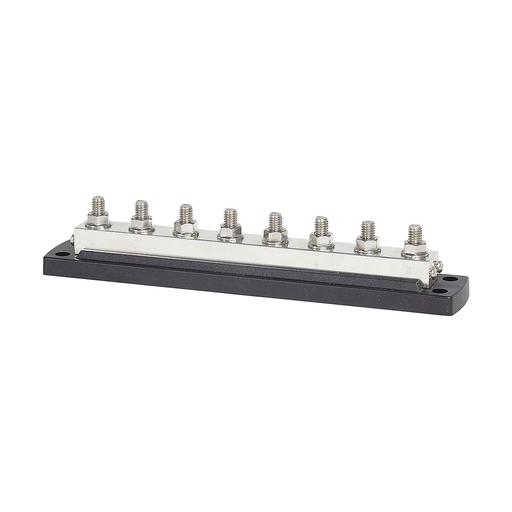

VBB160080010: 600A / 70V - 8 high current connections and 8 low current connections

For more technical information and for the busbar dimensions see the datasheet.

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
