Staubli Genuine 12m MC4 Extension Lead

MC4 Male to female extension leads:

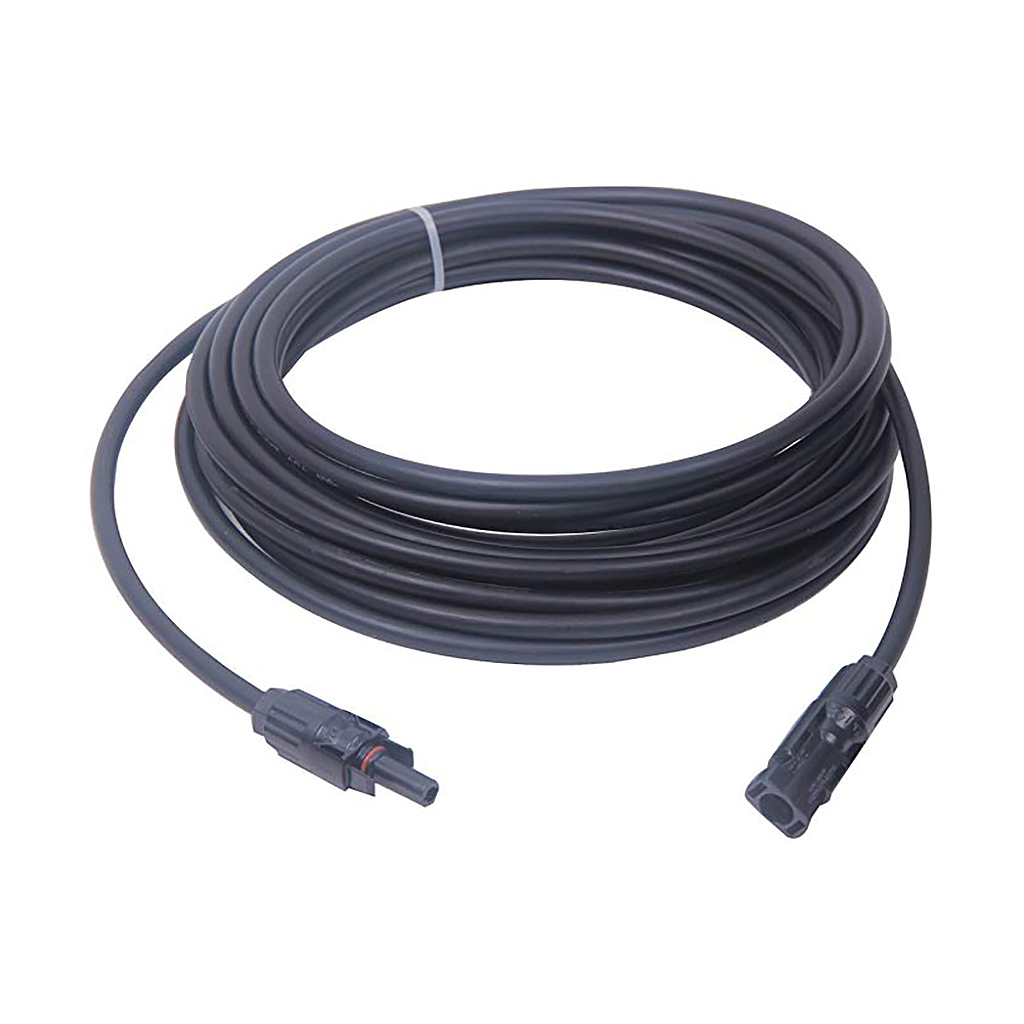

Genuine MC4 Male to Female extension leads are handy for extending the cables from the back of solar panels for grid or off grid solar installations. These are available in 2M, 5M, 8M, & 12M lengths. I.e If cut in half the 12M lead would give you 6 metres for the positive side and 6 metres for the negative. Usually these are used for grid/ residential panels for high voltage, low current strings. Keeping in mind that the cable is 4mm2 you'll need to keep voltage drop to a minimum when selecting the appropriate length.

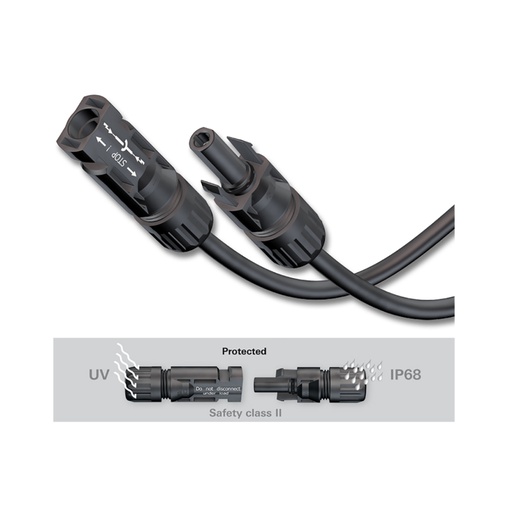

Second generation MC4 PV connector from Multi-Contact, which has rapidly become the most accepted connector in the world. The MC4 plug connector is designed to accept 4-6mm2 solar cable and is proven MC Multilam technology with high long term stability. Ensure your solar installations meet the requirements of Australian Standards AS5033 by only using genuine MC4 socket connectors. AS5033 Clause 4.3.7 requires that connectors are mated only with connectors of the same type from the same manufacturer.

MC4 connectors are single-contact electrical connectors commonly used for connecting solar panels. The MC in MC4 stands for the manufacturer Multi-Contact (currently Stäubli Electrical Connectors) and the 4 for the 4-mm diameter contact pin. MC4s allow strings of panels to be easily constructed by pushing the connectors from adjacent panels together by hand, but require a tool to disconnect them to ensure they do not accidentally disconnect when the cables are pulled. The MC4 and compatible products are universal in the solar market today, equipping almost all solar panels produced since about 2011.

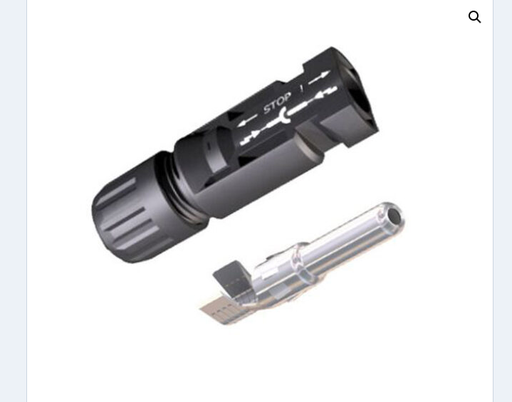

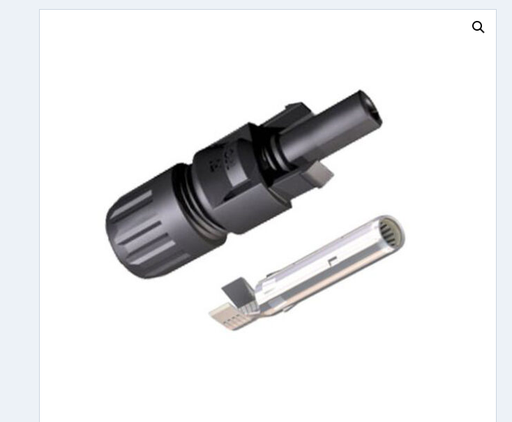

The MC4 system consists of a plug and socket design. Oddly, the plugs and sockets are placed inside plastic shells that appear to be the opposite gender - the plug is inside a cylindrical shell that looks like a female connector but is referred to as male, and the socket is inside a square probe that looks male but is electrically female. The female connector has two plastic fingers that have to be pressed toward the central probe slightly to insert into holes in the front of the male connector. When the two are pushed together, the fingers slide down the holes until they reach a notch cut into the side of the male connector, where they pop outward to lock the two together.

For a proper seal, MC4s require the usage of a cable with the correct diameter. Normally double-insulated (insulation plus black sheath) and UV resistant (most cables deteriorate if used outdoors without protection from sunlight). Connection is made by use of a special crimping tool, alternatively by soldering.

Features:

- Snap-in locking

- Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool

- Proven MC-Multilam technology with high long-term stability

- Tried and tested plug connectors

- Available for assembly with cross-sections of 4-6mm²

- Also available as ready made leads; 2M, 5M, 8M & 12M

- UV Protected

- Genuine Staubli MC4 connectors

- IP68
