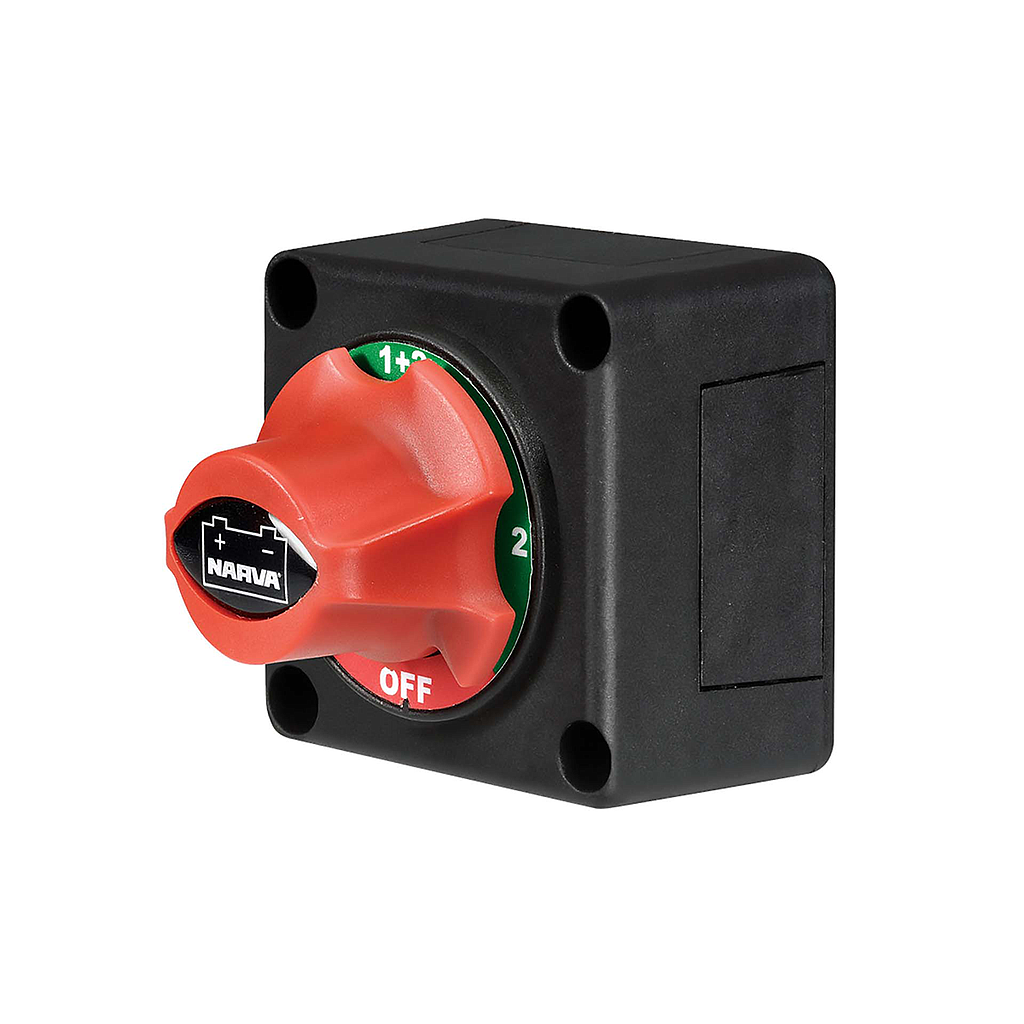

Narva 4 Position Rotary Battery Master Switch
Features:
• 4 Position Heavy Duty Switch
• Switches Between Isolated Battery Banks
• 300Amps Continuous Load Rating
| Brand: Narva |
NARVA
Narva battery master switch rotary style with 4 positions:
Narva offers an extensive range of battery master switches that are suitable for applications on a wide range of passenger cars, trucks and marine as well as stationary engines such as generators. Narva Battery Master Switches are manufactured using the highest quality materials and are available in a range of heavy duty plastic and metal body units that are suitable for both 12V and 24V applications.
Features brass terminals and heavy-duty plastic construction making it ideal for marine applications. Suitable for applications up to 48VDC 4 Position feature.

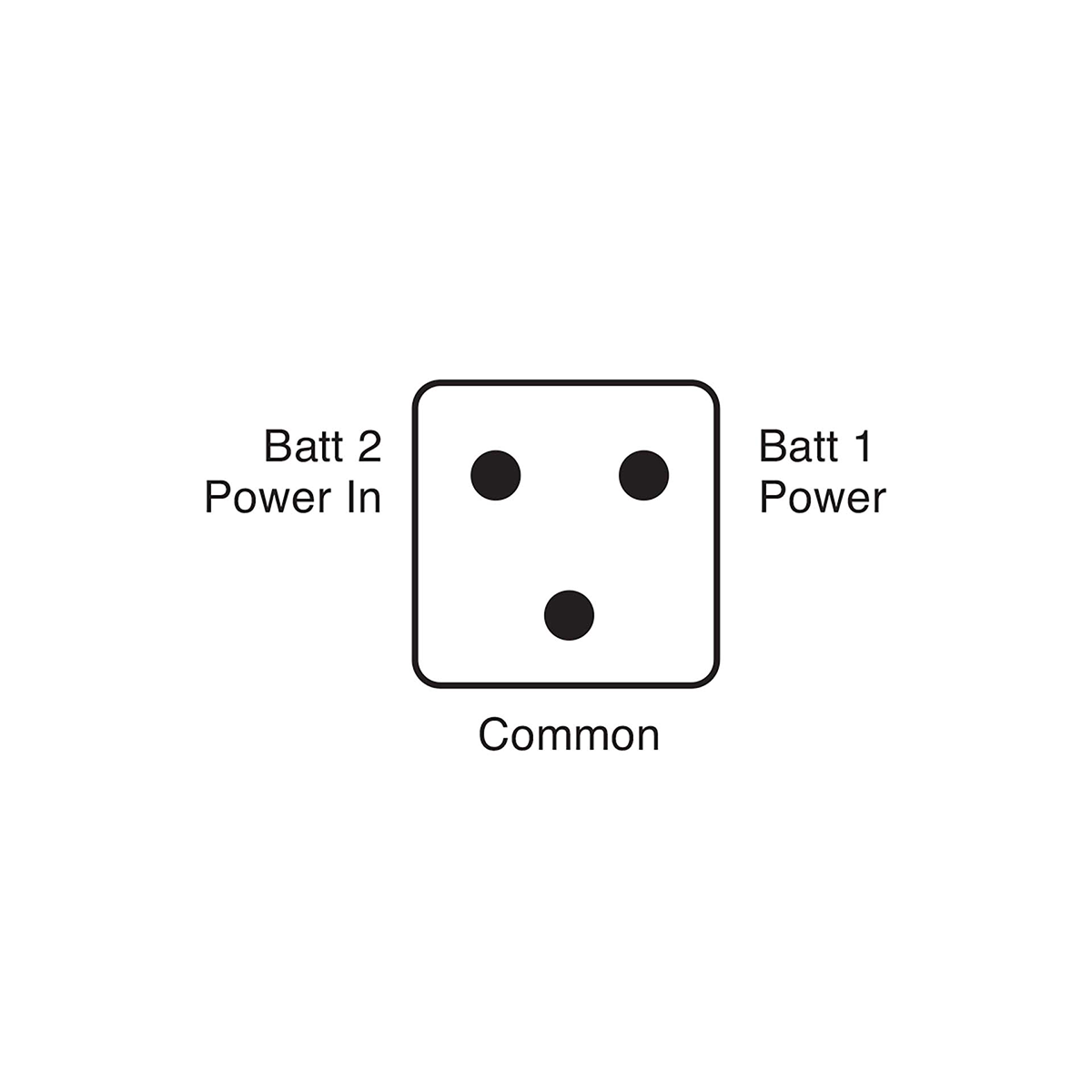

Battery 1 and 2, Battery 1, Battery 2, Off. 1500A at 12V for 10 seconds 750A at 24V for 10 seconds 300A at 12V continuous load maximum 150A at 24V continuous load maximum.
Features:
- Can be used as a battery isolation switch
- Can isolate between 2 different battery banks
- Heavy Duty Battery Switch suitable for 12 or 24 Volt
- Maximum load ratings - 300A at 12V continuous or 150A at 24V continuous
- Heavy duty plastic construction with brass terminals
- Suitable for Marine Applications
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Narva:
Market Leading Automotive Lighting and Electrical Equipment. NARVA is a proud Australian brand name that was established by Brown & Watson International Pty Ltd, a private company formed in 1957, which was adopted by Australian-owned GUD Holdings Limited in July 2015. NARVA’s slogan ‘The Vision to Go Further’ represents their passion to deliver the world’s highest quality vehicle lighting products that meet and exceed customer expectations.
Market-leading merchandising systems and attractive point-of-sale material are developed to assist customer product choice along with their highly skilled and specialised team of field representatives operating from the head office in Melbourne and from state offices throughout Australia and New Zealand.
Accessory Products
![[C135R] Tycab 13.5mm² Red Single 6B&S Cable](/web/image/product.product/974/image_512/%5BC135R%5D%20Tycab%2013.5mm%C2%B2%20Red%20Single%206B%26S%20Cable?unique=a696bdb)
Tycab 13.5mm² Red Single 6B&S Cable
$ 6.50 $ 6.50
$ 47.95
![[C256R] Tycab 25mm² Red Single 3B&S Cable](/web/image/product.product/959/image_512/%5BC256R%5D%20Tycab%2025mm%C2%B2%20Red%20Single%203B%26S%20Cable?unique=1647aae)
Tycab 25mm² Red Single 3B&S Cable
$ 12.50 $ 12.50
$ 47.95
![[C32R] Tycab 32mm² Red Single 2B&S Cable](/web/image/product.product/964/image_512/%5BC32R%5D%20Tycab%2032mm%C2%B2%20Red%20Single%202B%26S%20Cable?unique=2305327)
Tycab 32mm² Red Single 2B&S Cable
$ 15.30 $ 15.30
$ 47.95
Alternative Products
![[61038BL] Narva On/Off Battery Switch W/Removable Key](/web/image/product.template/2087/image_512/%5B61038BL%5D%20Narva%20On-Off%20Battery%20Switch%20W-Removable%20Key?unique=237f3d2)

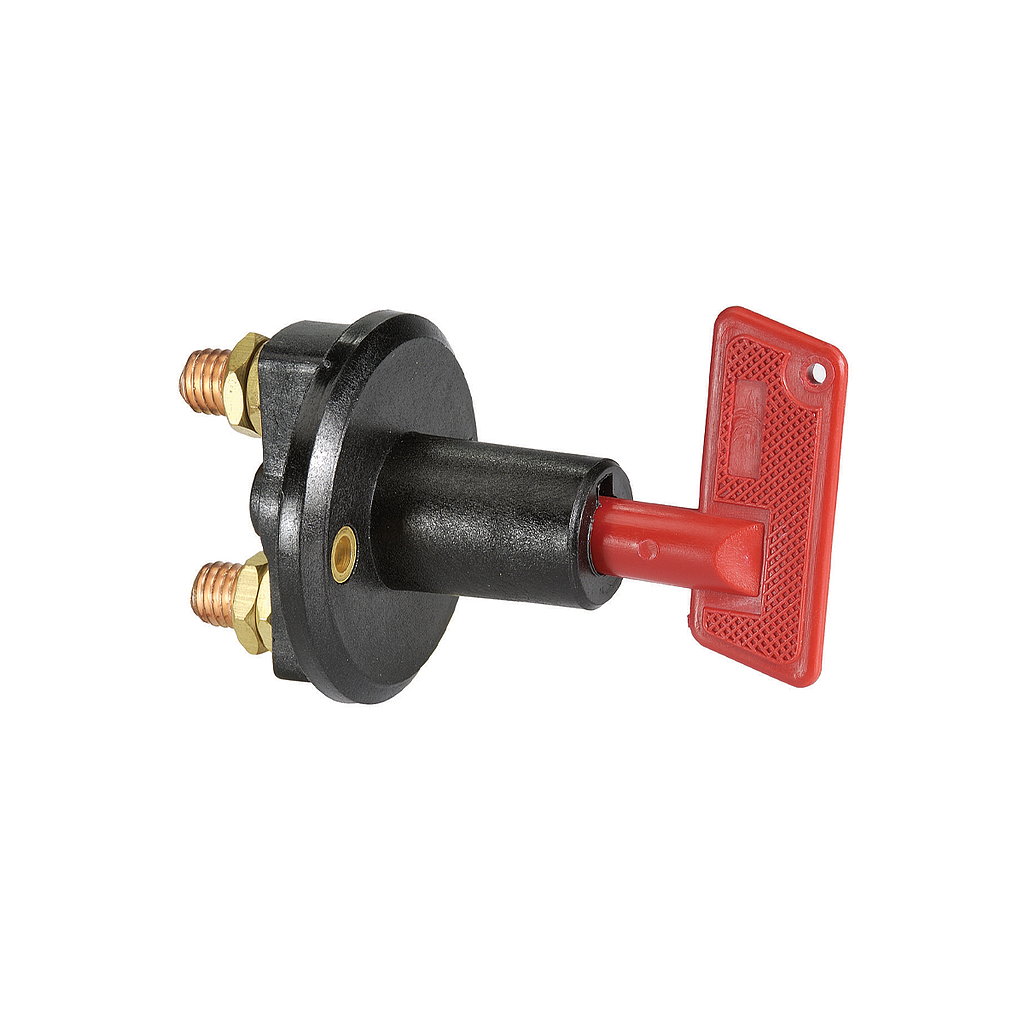

Narva On/Off Battery Switch W/Removable Key
$ 23.95 $ 23.95
$ 47.95
![[61036BL] Narva On/Off Rotary Battery Master Switch](/web/image/product.template/2380/image_512/%5B61036BL%5D%20Narva%20On-Off%20Rotary%20Battery%20Master%20Switch?unique=5197ee5)

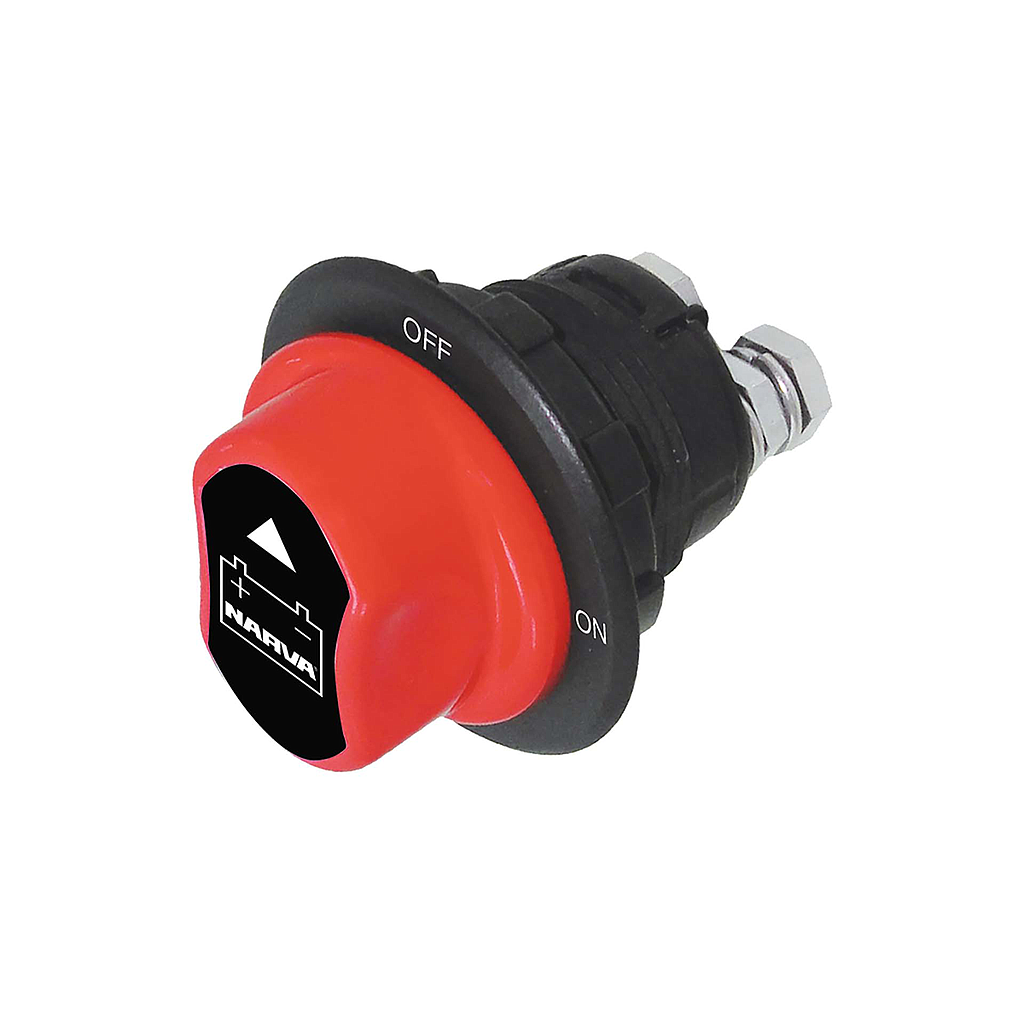

Narva On/Off Rotary Battery Master Switch
