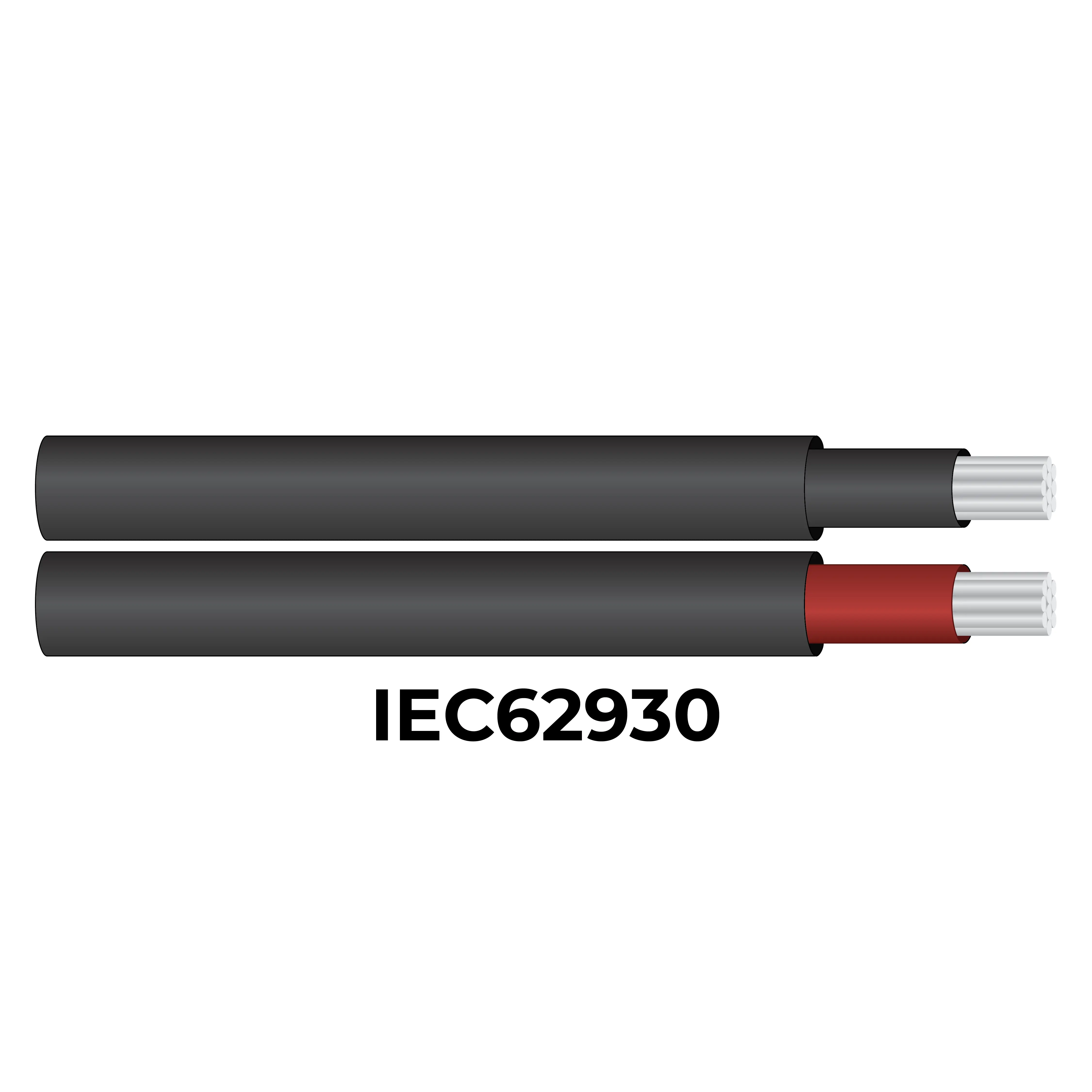

Alvolta Solar Cable 6mm² Twin IEC62930
Cable features
- H1Z2Z2-K solar PV cable compliant to EN 50618 and IEC 62930
- Rated voltage 1500V DC / 1000V AC
- 72A maximum current per conductor at 30°C
- 2 x 6mm² twin figure-8 cable
- Sold per metre in one continuous length
Construction
- Class 5 fine-stranded tinned copper conductors (84/0.285mm)
- Cross-linked XLPO insulation (0.7mm) and XLPO sheath (0.8mm)
- Black / black with red stripe sheath for easy polarity identification
- Halogen free and low smoke
Where to use it
The Alvolta Solar Cable 6mm² Twin IEC62930 carries positive and negative together in one neat figure-8 run, with a red-striped core so polarity is easy to pick. Rated to 1500V DC and 72A per conductor at 30°C, it suits wiring solar panels to a charge controller, isolator or inverter on caravans, RVs, 4WDs, boats, off-grid cabins and sheds, as well as larger off-grid and residential solar arrays.
Fine Class 5 tinned copper conductors keep it flexible for tight routing and crimp cleanly into MC4 connectors. Cross-linked XLPO insulation and sheath handle -40°C to +90°C ambient (120°C maximum conductor temperature), are rated AD7 and IPX7 for water resistance, and are halogen free and low smoke. Cut to length and supplied in one continuous run (allow 1-5mm for manual measuring), it's backed by a 1-year warranty.
Dimensions
Width | 12.3mm |
Height | 6.1mm |
Length | Sold per metre |
Safety features
- Double insulated (XLPO insulation and sheath)
- Halogen free, low smoke
- Flame tested to EN 60332-1-2
- AD7 & IPX7 water resistance
Warranty
Applications
4WD
RV's
Caravans
Marine
Off-Grid Systems
Tiny Houses
