Morningstar Remote Meter

Morningstar’s remote meter is a universal, four digit display with custom icons that is compatible with several morningstar controllers and inverters.

$ 199.00 - Inc GST 199.0 in stock AUD $ 199.00

$ 199.00

Brand

This combination does not exist.

ADD TO CART

Brand: Morningstar

MORNINGSTAR

SKU: ANL050

Category: PWM Charge Controllers MONITORING

Professional Series:

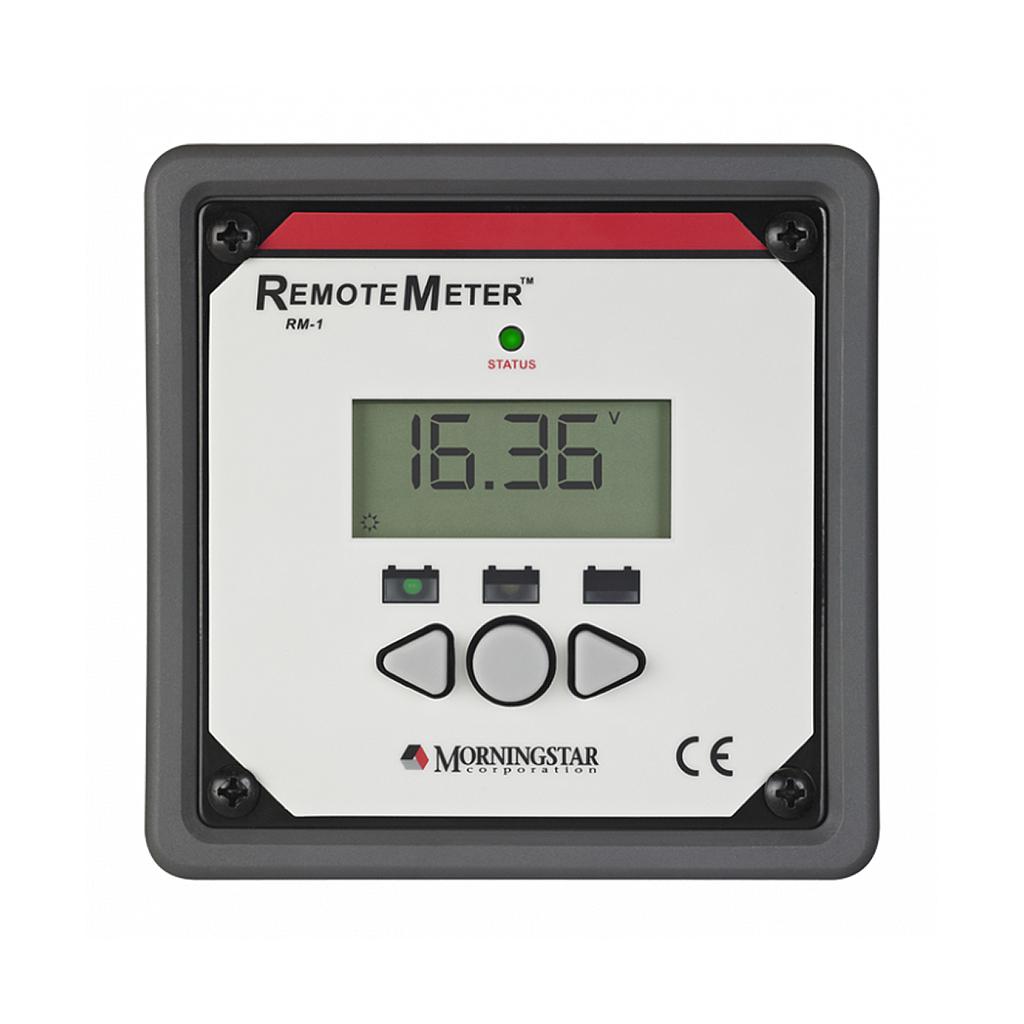

Morningstar’s Remote Meter (RM-1) is a universal, four digit display with custom icons that is compatible with several Morningstar controllers and inverters. This meter provides comprehensive system information for easy monitoring including voltage, current and temperature.

Compatible With:

ProStar (Gen3)
SunSaver Duo controller
ProStar MPPT controller
SunSaver MPPT controller
SureSine inverter

Key Features and Benefits:

Provides Important Information
Easy to Install
Easy to Use
Low Self-Consumption:
Backlight off 6mA
Backlight on 15mA
Mount in the wall or on the wall
Adjustable Settings

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Morningstar:

With 30 years of experience and more than 4 million products in over 100 countries, Morningstar has truly earned its reputation for building the “world’s leading solar controllers.” That’s why system designers of the most mission-critical solar energy installations around the world insist on Morningstar components. From mineral mines in South America to telecom repeater stations in Canada, from gas wells in the Middle East to mountain peaks in Nepal, Morningstar technology and legendary quality make the difference between success and failure. “Others survive harsh conditions. We THRIVE in them.”

Specifications

Brand

Morningstar

Datasheet_RemoteMeterENG.pdf

Download

Manual_SSD.IOM_.Remote_Meter-.01.EN_.pdf

Download

Product Specification

Backlight off	6 mA
Backlight on	15 mA
Minimum Operating Voltage	8 V
Connector type	RJ-11 (6 pin)
Faceplate dimensions	9.5 x 9.5 cm / 3.8 x 3.8 in.
Faceplate Material	Powder Coated Steel
Meter back dimensions	7.4 cm / 2.9 in. diameter 2.8 cm / 1.1 in. deep Fits 7.6 cm / 3 in. round hole
Frame dimensions	11.4 x 11.4 x 3.5 cm 4.5 x 4.5 x 1.4 in.
Frame material	PBT plastic
Meter cable	10 m / 33 ft (6 conductor) May be extended to 30 m / 100 ft
Meter cable temp. rating	60°C / 140°F
Meter weight	135 g / 0.3 lbs
Ambient Temperature	-20°C to +60°C -4 °F to +140 °F
Storage Temperature	–30 °C to +80 °C –22 °F to +176 °F
Humidity	100% N.C. Printed circuit board is conformal coated
