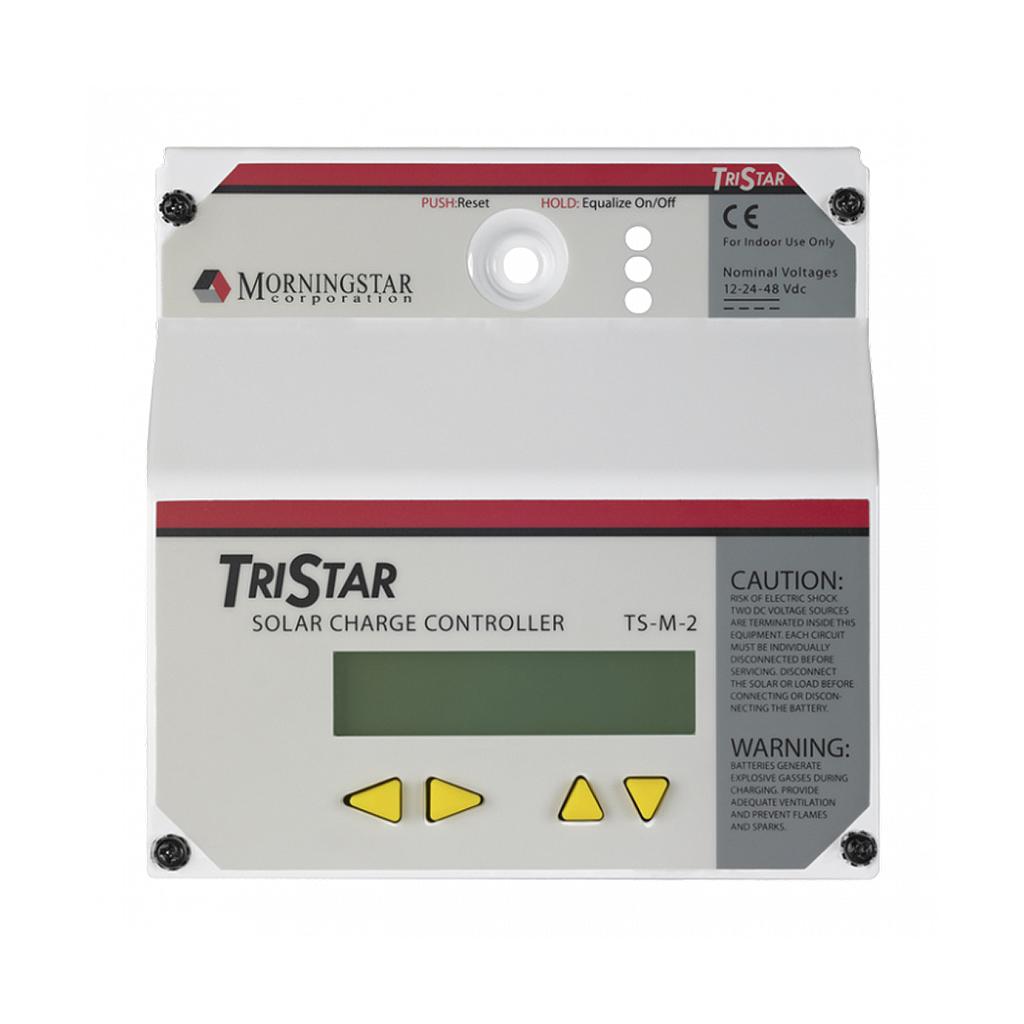

Morningstar TriStar Digital Display

Additional meter to suit morningstar tristar solar regulators

$ 299.00 - Inc GST 299.0 in stock AUD $ 299.00

$ 299.00

Brand

This combination does not exist.

ADD TO CART

Brand: Morningstar

MORNINGSTAR

SKU: ANL050

Category: MONITORING

Key Features and Benefits:

The meter will display a great deal of information about the TriStar controller and the operation of your system. In addition, the meter enables manual functions and controller diagnostics. These capabilities will increase your confidence that the system is working properly and will help you to improve system reliability, battery life, and system performance. It is worth the time getting to know your meter!

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Morningstar:

With 30 years of experience and more than 4 million products in over 100 countries, Morningstar has truly earned its reputation for building the “world’s leading solar controllers.” That’s why system designers of the most mission-critical solar energy installations around the world insist on Morningstar components. From mineral mines in South America to telecom repeater stations in Canada, from gas wells in the Middle East to mountain peaks in Nepal, Morningstar technology and legendary quality make the difference between success and failure. “Others survive harsh conditions. We THRIVE in them.”

Specifications

Brand

Morningstar

Datasheet_TriStarMETER-RM2.pdf

Download

Manual_TriStar-Meter-2.pdf

Download

Product Specification

Backlight off	<0.5W
Backlight on	42.5 mA
TS-RM-2 Mounting Plate Dimensions	116 x 116 mm / 4.56 x 4.56 inch
Plate Material	Powder coated steel
Weight: TS-M-2 TS-M-2-600V TS-RM-2	0.23 kg / 0.5 lb 0.18 kg / 0.4 lb 0.18 kg / 0.5 lb
Connector Type	RJ-11 (6-pin)
TS-M-2 cable	0.13 m / 5 in – 6 conductor
TS-M-2-600V cable	0.35 m / 14 in – 6 conductor
TS-RM-2 cable	30 m / 98.4 ft – 6 conductor
Cable Temperature	60°C rating
Ambient Temperature	-40°C to +60°C
LCD temperature Rating	–20 °C to +70 °C
Storage Temperature Range	-55°C to +85°C
Humidity Tolerance	5 to 95 % (NC)
Tropicalization	Conformal Coating on both sides of circuit board
